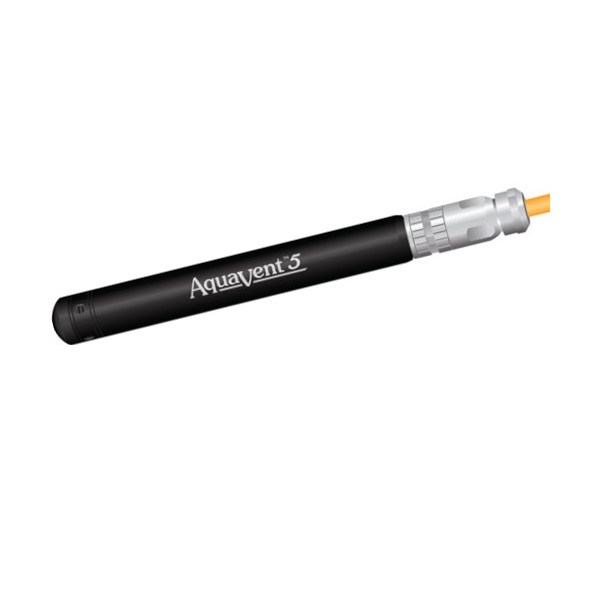

Solinst 114623 AquaVent 5, Full Scale 5m (16.4ft)

AquaVent 5, Full Scale 5m (16.4ft)

The AquaVent 5 records accurate water level and temperature measurements in shallow groundwater and surface water applications. It combines pressure and temperature sensors, hydrophobic filters and datalogger within a 22 mm x 173 mm (7/8" x 6.8") stainless steel housing with corrosion-resistant coating. The AquaVent 5 uses a gauged pressure transducer; it is open to the atmosphere via a vented cable to surface. Atmospheric pressure is applied to the transducer diaphragm, providing a cancellation effect for barometric pressure. This results in actual water level recordings. The vented cable and Solinst AquaVent 5 logger are protected from moisture by built-in desiccants and hydrophobic filters. The vented pressure transducer is made of Hastelloy, making it extremely durable and accurate in a wide range of temperature and monitoring conditions. The sensor provides an accuracy of 0.05% FS, and can withstand 2 times over-pressure without permanent damage. The robust memory can hold up to 150,000 data sets when programmed in Solinst Levelogger Software.

Features

• Gauged pressure sensor for highly-accurate water level measurements: 0.05% FS
• Multiple built-in hydrophobic filters and desiccants - no need to replace, reduces maintenance
• Easy-to-access, user-replaceable batteries in Wellhead
• Options for MODBUS (RS-232/RS-485) and SDI-12
• Separate cables for each communication protocol
• Corrosion and abrasion-resistant coating baked-on using polymerization technology

Applications

• Ideal for shallow applications: up to 20 m (65 ft) submergence
• Aquifer characterization: pumping tests, slug tests, etc.
• Stream gauging, lake and reservoir management
• Watershed, drainage basin and recharge monitoring
• Stormwater and runoff monitoring
• Long-term water level monitoring in wells and surface water
