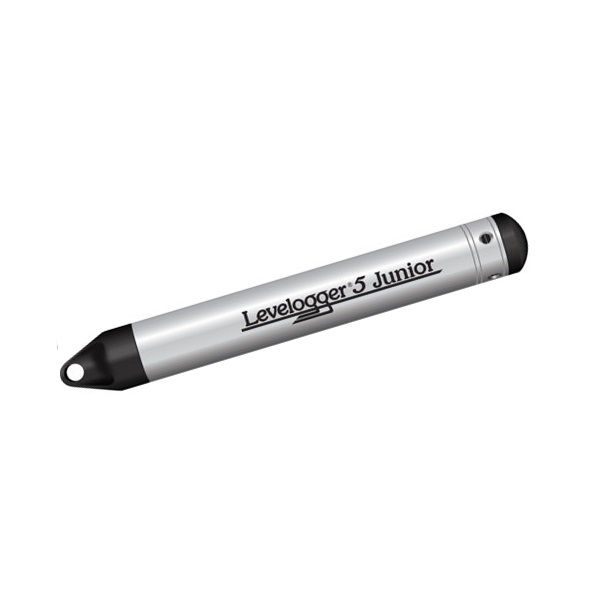

Solinst 114606 Levelogger 5 Junior, Full Scale 5m (16.4ft)

Levelogger 5 Junior, Full Scale 5m (16.4ft)

The Levelogger 5 Junior provides an inexpensive alternative for measuring groundwater and surface water levels and temperature. The Levelogger 5 Junior combines a pressure sensor, temperature detector, a datalogger, and 5-year battery (based on a 1-minute sampling rate) in one compact 22 mm x 160 mm (7/8" x 6.3") stainless steel housing. The Levelogger 5 Junior records absolute pressure using the same durable Hastelloy pressure sensor as the Levelogger 5. The Hastelloy sensor has excellent performance in harsh environments and can withstand 2 times overpressure without

The Levelogger 5 Junior features a memory with a capacity of 75,000 sets of temperature and water level data points. Readings are linear at a user-defined interval between 0.5 second to 99 hours. Accuracy is 0.1% FS with lifetime factory calibration. If greater accuracy, more sampling options, or wider depth.

Features

• Low cost
• Accuracy of 0.1% FS
• Memory for 75,000 data points
• Robust Hastelloy pressure sensor
• Single-eye optical for fast, reliable communication

Applications

• Monitoring water levels in wells and surface water
• Pump and slug tests
• Reservoir and stormwater runoff management
• Watershed and drainage basin monitoring
• Stream gauging, lake and wetland monitoring
• Tank level measurement
