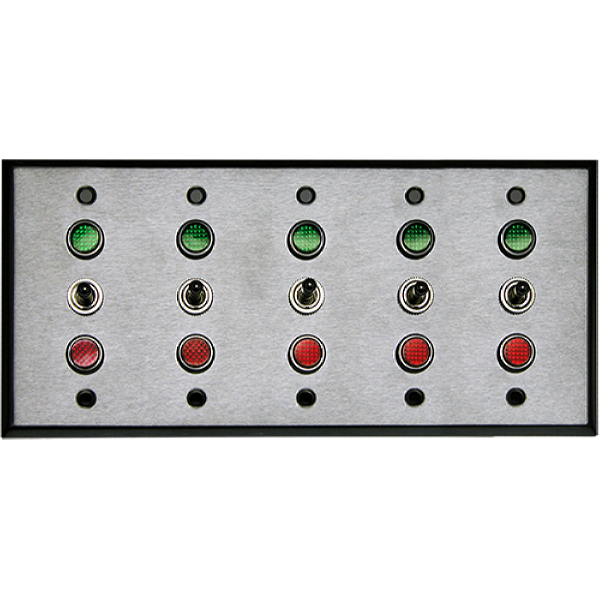

Signal-Tech 39074 FVG33333 SPDT/24VDC 5 Gang Switch (5-SPDT)

Overview

This robust Signal-Tech 39074 FVG33333 SPDT/24VDC 5 Gang Switch assembly is a professional-grade control solution designed for applications requiring precise management of multiple circuits. This five-gang switch assembly features five 3-position SPDT (Single Pole Double Throw) switches, each with integrated indicator lights, offering versatile On/Off/On control. It effectively replaces cumbersome or less reliable switching systems, providing a centralized and organized control interface for improved operational efficiency. The primary benefit is enhanced control and clear visual feedback, minimizing errors and streamlining workflow. This assembly simplifies the management of complex electrical systems, offering a reliable and user-friendly control solution.

Key Features

• Five 3-Position SPDT Switches: Provides flexible On/Off/On control for each of the five circuits, enabling versatile management of electrical systems.
• Integrated Indicator Lights: Offers clear visual feedback on the status of each switch, improving operator awareness and reducing the risk of misoperation.
• Durable Stainless-Steel Cover Plate: Features a brushed stainless-steel cover plate for a professional appearance and robust durability, ensuring long-lasting performance.
• 24VDC Operation: Designed for use in 24VDC electrical systems, common in industrial automation and control.

Specifications

• Manufacturer: Signal-Tech
• Part Number: 39074
• Model: FVG33333
• Type: Five Gang Switch Assembly
• Number of Switches: 5
• Switch Type: 3-Position SPDT (On/Off/On)
• Voltage: 24VDC
• Cover Plate Material: Brushed Stainless Steel
• Indicator Lights: Yes

Applications

Ideal for automation engineers needing a comprehensive panel for managing multiple devices, industrial electricians requiring precise control of machinery or lighting circuits, and control system designers building custom control panels. This switch assembly is also suitable for robotics technicians controlling actuators or sensors, and for any professional requiring versatile and clear switching capabilities in a 24VDC environment. Its 3-position functionality and indicator lights provide the necessary control and feedback for complex electrical operations.

Performance and Characteristics

The Signal-Tech 39074 switch assembly is engineered for robust and consistent performance. The SPDT switches provide a positive and reliable switching action. The indicator lights offer immediate visual confirmation of the circuit status, enhancing operator confidence. The brushed stainless-steel cover plate ensures durability and resistance to wear, maintaining a professional appearance over time. The 24VDC operation aligns with standard industrial control systems, simplifying integration. The assembly is designed for installation in a standard electrical box (not included), providing a standardized and convenient mounting option.

Additional Information

The 3-position SPDT switches offer enhanced control compared to simple On/Off switches, enabling the management of two separate circuits or functions per switch. The indicator lights, typically LEDs, provide energy-efficient and long-lasting illumination. The brushed stainless-steel finish offers both aesthetic appeal and resistance to fingerprints and corrosion. While the assembly is durable, it's crucial to ensure proper installation and protection from excessive moisture or harsh environments for optimal performance. The absence of an included electrical box allows for flexibility in selecting a box that meets specific installation codes and requirements.

Kit Contents

• Signal-Tech 39074 FVG33333 SPDT/24VDC 5 Gang Switch Assembly

Optimize your control systems with the reliable and versatile Signal-Tech 39074 5 Gang Switch Assembly. Enhance your operational efficiency today!
