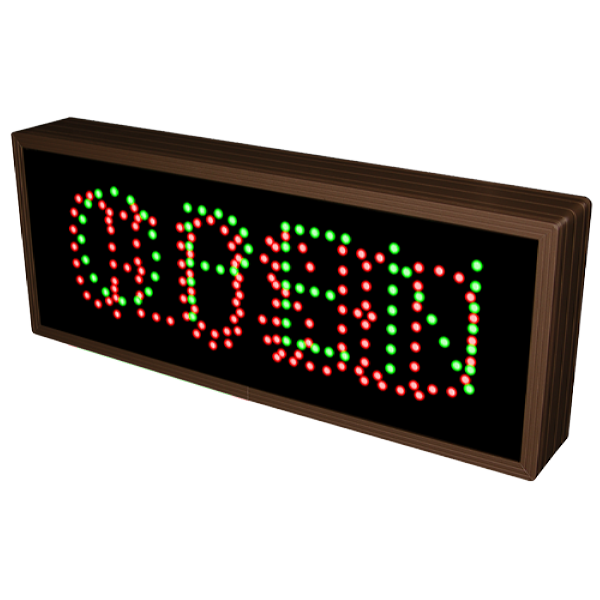

Signal-Tech 31125 TCL718GRR-202/12-24VDC "OPEN | CLOSED | FULL" Outdoor Blank-out LED Direct-view Sign

Key Facts

• Product Type: Outdoor blank-out LED direct-view sign
• Displayed Messages: OPEN / CLOSED / FULL
• Technology: Direct-view LED with blank-out display
• Input Voltage: 12–24 VDC
• Cabinet Construction: Corrosion-resistant extruded aluminum
• Dimensions: 7 in. H x 18 in. W x 2.5 in. D (177.8 x 457.2 x 63.5 mm)
• Finish: Duranodic Bronze (custom finishes available)
• Certification: UL/cUL Listed for wet locations

Overview

The Signal-Tech 31125 TCL718GRR-202/12-24VDC “OPEN | CLOSED | FULL” outdoor blank-out LED sign provides clear, high-visibility messaging to communicate business status or occupancy conditions. Using direct-view LED technology with blank-out functionality, the sign displays only the active message while the others remain hidden, ensuring clean and unambiguous communication.

Super-bright LEDs deliver strong readability even in direct sunlight, making the sign suitable for outdoor commercial environments where clear messaging is critical. Businesses and facilities can easily indicate whether they are open, closed, or at capacity, helping customers and visitors understand availability before entering.

Engineered for outdoor durability, the sign features a corrosion-resistant extruded aluminum cabinet and energy-efficient electronics. A solid-state circuit board and switch-mode power supply help maximize LED lifespan and operational reliability. The unit operates on 12–24 VDC, making it compatible with low-voltage installations and automated control systems.

Features

• Displays three messages: OPEN, CLOSED, or FULL
• Blank-out LED technology shows only the active message
• Direct-view LEDs provide excellent visibility in daylight conditions
• Wide viewing angle improves readability for approaching customers
• Durable extruded aluminum cabinet designed for outdoor environments
• Energy-efficient solid-state electronics and switch-mode power supply
• Low-voltage 12–24 VDC operation supports flexible installation
• Ships with Lift’N Shift back for easy wall mounting
• Optional ceiling, post, or wall-projection mounting hardware available
• UL/cUL Listed for wet locations

Technical Specifications

• Manufacturer: Signal-Tech
• Model: TCL718GRR-202/12-24VDC
• Part Number: 31125
• Display Type: Outdoor blank-out LED direct-view sign
• Messages: OPEN / CLOSED / FULL
• Input Voltage: 12–24 VDC
• Cabinet Material: Corrosion-resistant extruded aluminum
• Standard Finish: Duranodic Bronze
• Dimensions: 7 in. H x 18 in. W x 2.5 in. D (177.8 x 457.2 x 63.5 mm)
• Weight: 4.42 lb
• Viewing Angle: Wide angle
• Mounting: Wall mount (Lift’N Shift back included)
• Optional Mounting: Ceiling mount, post mount, wall-projection mount
• Power Supply: Switch-mode
• Circuit Board: Solid-state
• Certifications: UL Listed, cUL Listed for wet locations

Compatibility

Compatible with low-voltage electrical systems operating on 12–24 VDC. The sign can be controlled using a manual switch, timer, or relay-based automation system depending on installation requirements.

Use Cases

• Retail storefront business status signage
• Restaurants indicating availability or seating capacity
• Parking facilities communicating occupancy status
• Hotels or hospitality venues indicating availability
• Gas stations and service businesses communicating operational status
• Commercial entrances requiring clear visitor guidance

What’s Included

• Signal-Tech TCL718GRR-202/12-24VDC OPEN | CLOSED | FULL LED sign
• Lift’N Shift back for wall mounting

Installation Notes

• Install using the included Lift’N Shift back for wall mounting.
• Optional hardware supports ceiling, post, or wall-projection installations.
• Connect to a compatible 12–24 VDC power source.
• Control switching may be performed using an external switch or relay system (switch sold separately).

Related Standards / Compliance

• UL Listed
• cUL Listed
• Rated for wet locations

Category FAQs

What is a blank-out LED sign?

A blank-out sign displays only the illuminated message while other messages remain hidden. This ensures clear communication and a clean appearance when the sign is not active.

Why use an OPEN / CLOSED / FULL sign?

This type of sign allows businesses to communicate operating status and occupancy conditions clearly, helping customers know whether the business is open, closed, or at capacity.

Are direct-view LED signs visible in daylight?

Yes. Direct-view LED signs use high-brightness LEDs designed to remain visible even in bright outdoor lighting conditions.

Can the sign operate on low-voltage power systems?

Yes. This model operates on 12–24 VDC, allowing integration with low-voltage control systems or automation setups.

Can the sign automatically change messages?

Yes. The sign can be controlled using switches, timers, or relay-based systems to change the displayed message based on business hours or occupancy conditions.

Is the sign suitable for outdoor environments?

Yes. The corrosion-resistant aluminum cabinet and UL/cUL wet-location certification allow reliable operation in outdoor weather conditions.

What mounting options are available?

The included Lift’N Shift back supports wall mounting, while optional accessories allow ceiling mounting, post installation, or wall-projection mounting for greater visibility.

What types of businesses commonly use status LED signs?

Retail stores, restaurants, hotels, parking garages, service stations, and commercial facilities often use LED status signage to communicate availability and operating conditions.
