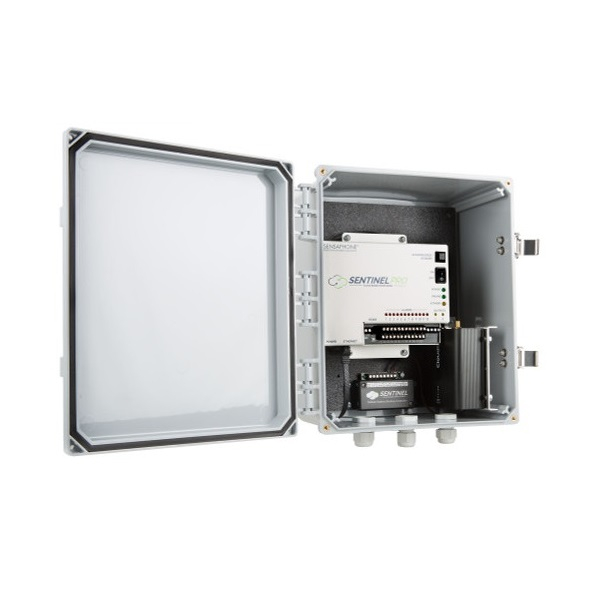

Sensaphone SCD-PRO-4GRWSD Rogers 4G Sentinel Pro Monitoring System with Cellular Modem, Solid Door
- Part #:SCD-PRO-4GRWSD
- Model #:Sentinel Pro
- Condition:Brand New

Sentinel Pro 4G Rogers Cellular Modem Solid Door
Features:
- Store your sensor readings in the cloud to automatically protect against data loss and provide limitless information storage
- Receive alarm notifications through a cellular connection
- Notifies an unlimited number of people by e-mail, text message or voice phone calls in the event of an alarm
- Poll Modbus registers from other equipment and twelve external digital or analog sensors monitor temperature, humidity, water and more
- A cellular modem provides operation in locations where an ethernet connection is unobtainable
- Temperature sensing range of -109° to 168 °F
- Manage multiple units, make programming changes and access status conditions using a simple, powerful web-based interface
- Contact us before purchasing to confirm cellular coverage
- Cellular modem and SIM card included
The system monitors, delivers alarms, and data logs input/output points from third-party Modbus sensors, transducers and programmable logic controllers. The system supports Modbus RS485. It takes the burden out of managing your system by giving you access to your readings from anywhere using a simple, powerful web-based interface. If there's a disruption, you'll be the first to know.
INCLUDED: Internal rechargeable battery- backup system will provide 8 hours of continuous monitoring and alerting in the event of a power outage.
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Communication Method | Cellular |
| Number of Inputs | 12 Digital or Analog & 64 Modbus Registers |
| Input Types | Modbus RTU/485 and Modbus TCP, Dry Contact, 2.8K, 10K, 4-20mA |
| Temperature Sensing Range | -109° to 168°F |
| Output Relay | Two low voltage NO/NC relay outputs |
| Remote Access | Website and mobile app to access status and programming |
| Local Access | LEDs for Alarm Status, Power Status, and Cellular link |
| Alarm Notifications | An unlimited number of email, text, or phone calls |
| Power Requirements | 12-24V DC, Comes with 12V DC plug-in power supply, International power options available, Current Draw: 300mA at 24VDC |
| Data Logging | Unlimited samples securely stored on the Sentinel servers, Programmable sampling Interval - 5 mins to 24 hrs |
| Battery Backup Time | 8 Hours |
| Physical Dimensions | 12.5 x 12.2 x 7.0", 10.5 lbs |
| Antenna | 2G/3G/4G |
| Frequencies | 698-960/1710-2700MHz |
| Peak gain | 5dBi, |
| Pattern: | Omni-directional |
| Height | 6.45" (164mm) |
| Diameter | 1.90" |
| IP Rating | IP-66 |
| Operating Temp | -40°F to 176°F (-40° to 80°C) |
