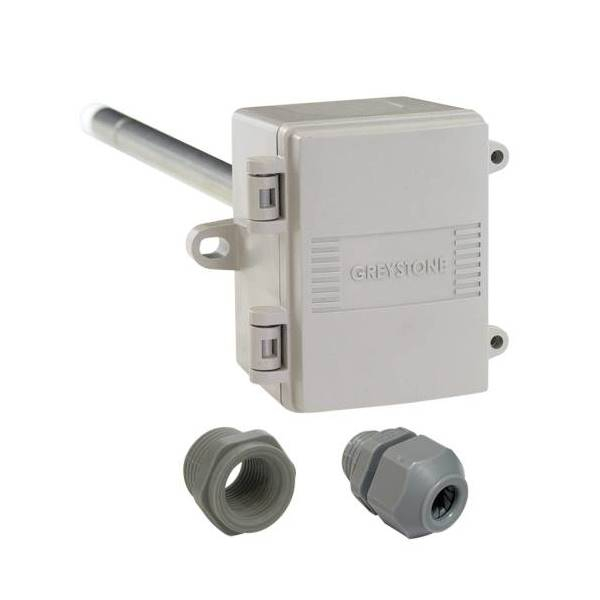

Sensaphone FGD-0052-DUCT 4-20mA Duct Mount Humidity Transmitter
- Part #:FGD-0052-DUCT
- Condition:Brand New
- List Price:
$229.00 - $217.10 / EachYou Save: 5.2%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price:
$229.00 - $217.10 / EachYou Save: 5.2%
- Free Shipping
4-20mA Duct Mount Humidity Transmitter
Features:
- Measures humidity from 0 to 100% RH
- Accurate to ±3% RH
- Set high and low limits by programming the Sensaphone
- Sensaphone will go into alarm when humidity exceeds limit
- Thermoset Polymer based capacitive sensor type
The Duct Mount Humidity sensor will measure and provide real time humidity values to any Sensaphone that accepts a 4-20mA signal. When the Humidity level falls outside of the Sensaphone's programmed high or low limit, the user will receive an alarm which displays or reads the current humidity value. The sensor can be programed to detect humidity levels from 0 to 100% RH. The duct mount enclosure allows the sensor to be mounted in a return air duct. A 24V DC power supply is required to power the sensor.
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Humidity Level Monitoring Range | 0 to 100% RH |
| Accuracy at 25°C | 3% RH (5 - 95% RH) |
| Dimensions | 4.5w x 3.3h x 2.1d inches |
| Sensor Response Time | 15 seconds typical |
| Stability | 1% RH typical at 50% RH in 5 yrs |
| Operating Temperature Range | -40° to 158°F |
| Operating Humidity | 0 to 95% RH non-condensing |
| Housing | IP65 NEMA 4X |
| Notes | Requires a 24VDC power supply |
