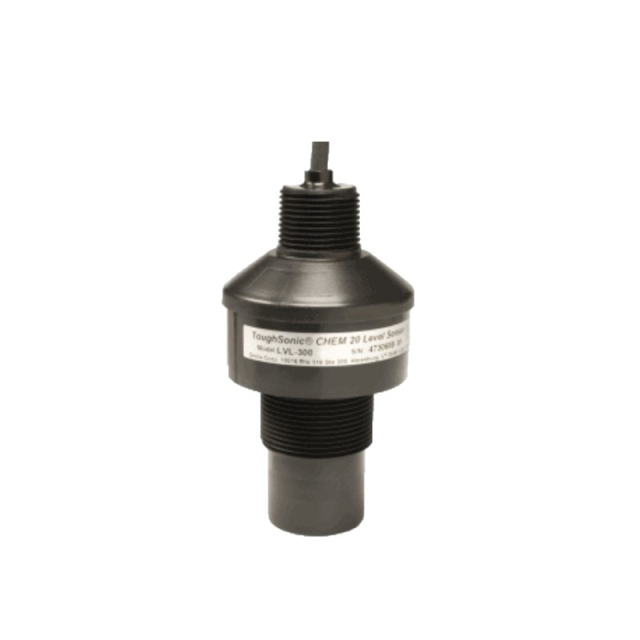

Senix TS-200.20H1X.007FB ToughSonic CHEM 20 Level Sensor, 5 Outputs Plus RS-232 Configuration Interface
- Part #:TS-200.20H1X.007FB
- Model #:ToughSonic CHEM 20
- SKU:LVL-300-232
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingDescription
These sensors are housed in a rugged, chemically inert PVDF sealed housing for long life. They mount above the material surface and measure distance downward without contact. Outputs respond to that measured distance.
Features:
- Non-contact level measurement
- Rugged construction, IP68 rated
- Indoor or outdoor uses
- Top and bottom mounting threads
- Five outputs plus serial data
- Serial data-only models
- Temperature compensation
- PC configurable
Applications:
- Chemical tank levels
- Benign liquid tank levels
- Tanks up to 20-ft (6.1 m) tall
- 1-1/2 inch NPT or BSP tank fittings
⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Maximum Range | 35 feet (10.7 meters) |
| Optimum Range | 12 inches to 25 feet (30.5 cm to 7.6 meters) |
| Deadbande | 0-12 in (0-30.5cm) |
| Temperature | -40° to 158° F (-40° to 70° C) |
| Humidity | 0 to 100% operating |
| Protection | NEMA-4X, NEMA 6P, IP68 |
| Transducer | Chemically isolated piezoelectric |
| Compensation | Temperature compensated |
| Resolution | Serial data: 0.0034 in. (0.086 mm). Analog steps: 4099 (0-10 VDC), 3279 (4-20 mA) |
| Repeatability | Nominal 0.2% of range @ constant temp. Affected by target, distance, environment |
| Update Rate | 20 Hz (50 ms), SenixVIEW adjustable; affected by SenixVIEW filter selections |
