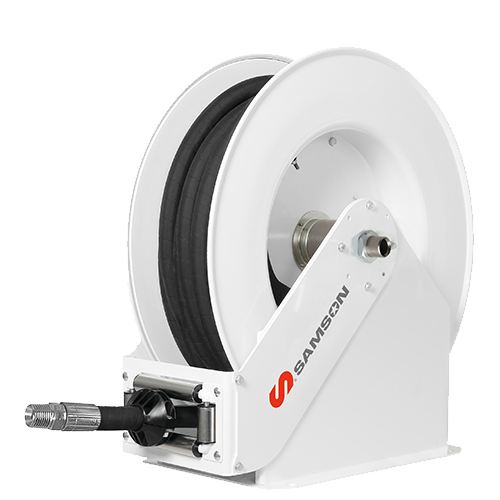

Samson Corporation 508125 508 Series Low Pressure Hose Reel 50' X 1"

Fluids Handled

• Air
• Water
• Antifreeze solutions

Markets Served

• Fleets
• General manufacturing
• Lube trucks
• Mining and construction
• Railroad and mass transit

Features:

• 508 Series HD Large Capacity Hose Reels. Full metal, heavy-duty, double pedestal hose reels, with hose capacity up to 50' x 1" hose.
• Very tough construction. Large capacity reels, able to stand regular use and abuse in intensive duty applications
• Fatigue resistant steel spring. For years of durable performance and even load when pulling and recoiling the hose
• Spool mounted on two permanently lubricated and sealed ball bearings. To reduce torque load on spring for smooth retraction and longer life
• Large latching area for easier operation.
• Hose reels offer four mounting positions. May be mounted in floor, ceiling and tank positions
• Hose reels are delivered in the ceiling mount position.
• Operating Temperature Range: Air/ water/ antifreeze/oil: -22 ºF to194º F (-29 ºC to 90 ºC)
• Wetted Parts: Air/ water/ antifreeze/oil: Steel, electro-less nickel plated steel, Nitrile rubber
• Weight without hose: 92.5 lb (43.5 Kg)
