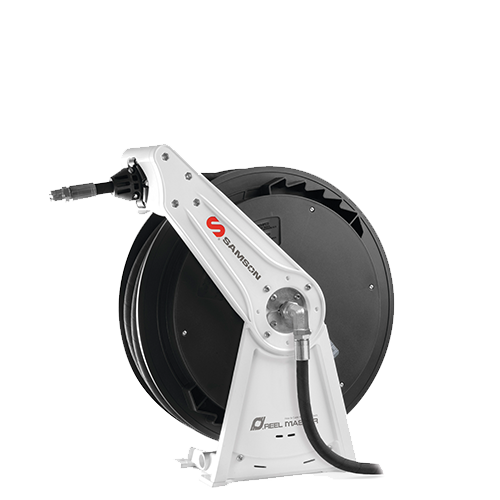

Samson Corporation 506421 506 Series Reel HP 50' x 3/8" for HP Water

Aluminum base and arms with composite spool hose reel. Reel can handle up to 50' x 3/8" hose.

Features:

• Aluminum base and guide arm. Provide the rigidity to withstand the most demanding applications while offering a reduced weight, almost half the weight of a double arm steel reel, allowing for easy installation
• Fatigue resistant steel spring. Offers years of durable performance and even load when pulling and recoiling the hose
• Fully ported shaft and swivel. For improved flow
• Spool mounted on two permanently lubricated and sealed ball bearings. To reduce torque load on spring for smooth retraction and longer life
• Large latching area for easier operation.
• Six roller guide outlet. Prevents hose pinching and reduces friction
• Reducing Adaptor. Low pressure reels with 3/8" hose come with a 3/8" x 1/4" reducing adaptor for use with hose accessories.
• Hose guide arm can be placed in different positions. To accommodate any method of reel mounting
• Hose reels with hose include 30" inlet hose and ball stop.
• Hose reels offer four mounting positions. May be mounted in floor, wall, ceiling and tank positions
• Hose reels are delivered in the ceiling mount position. For reels delivered with arm in side mount position, add the suffix SM to the hose reel part number. i.e. 506 101SM

Fluids Handled:

• High pressure hot water

Markets Served:

• Car and truck dealers
• Service shops
• Fleets
• General manufacturing
• Service stations
• Quick lubes
