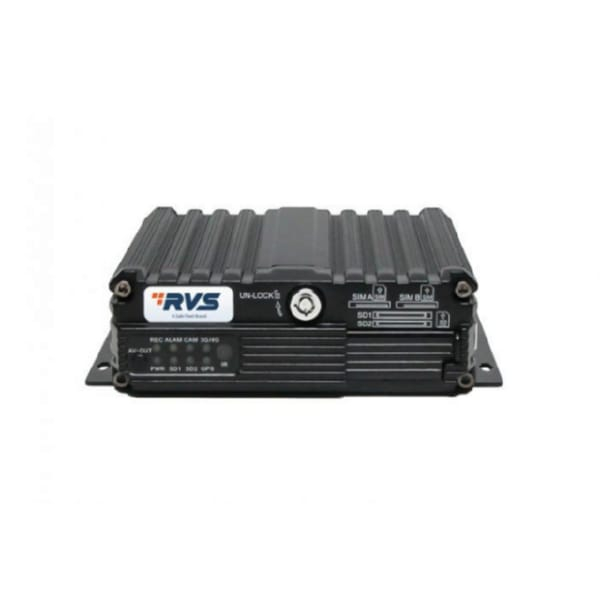

Rear View Safety RVS-5500-03 MobileMule 5500 | 5 Channel Mobile DVR with GPS (SD), 9" RCA Display
- Part #:RVS-5500-03
- Model #:MobileMule
- Condition:Brand New

The MobileMule™ 5500 is a highly functional mobile DVR designed for on-board vehicle recording. It has four ports to record up to four cameras simultaneously and an ethernet port to connect an IP camera. The MobileMule™ 5500 comes with GPS which gives you the option of recording the location and driving route together with the video footage. The DVR can be connected to a monitor so that you can view the cameras in real time in addition to recording them and allows you to view each camera independently or all together in a split view. The footage records onto two SD cards each with a 256gb capacity giving you a total of 512GB of storage capability. With a solid and compact build, the MobileMule™ 5500 is vibration-proof, installation-friendly and combines powerful functions together with a stable performance.
Features:
- Can connect & record up to (5) five cameras simultaneously
- Built-in GPS - records location and driving route
- Secure Recording to Lockable SD Cards - 512GB total storage capacity
- Built-in Ethernet Port - Easily Connect Forward Facing IP Camera
- Free Gateway Hosting - No Recurring Fees
- Military grade vibration and shock rating (MIL-STD-810G)
Includes:
- 1 x 9" TFT LCD Digital Quad View Color Monitor with RCA Connections
- 1 x 5 Channel Mobile DVR
- 1 x Remote Control
- 1 x GPS Module
- 1 x Power Wire
- 1 x Cable Protector
- 1 x Trigger Harness
- 1 x Front Monitor Harness
- 1 x Monitor Harness
- 4 x Adapter Cables
- 2 x DVR Keys
- 1 x Allen Wrench and Screw
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| DVR 5500 Specs | |
| Language | English / Chinese |
| Operation Interface | Graphical User Interface (OSD menu) |
| Password Security | 2 Levels: Administrator or User |
| Video Input | Supports 5 channels - 4 CIF/HD1/D1/960H/720P AHD Camera Video inputs & Ethernet Port For Forward Facing IP Camera |
| Video Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) |
| Video Display | Single picture, 1~5 pictures |
| Signal System | PAL / NTSC ( PAL at100 frame 720P/sec; NTSC at120 frame 720P/sec ) |
| Image Compression | H.264 Main profile |
| Audio Input | 4 Channels |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) |
| Recording Format | Synchronized A/V recording |
| Image Resolution | CIF / HD1 / D1 / 960H / 720P optional |
| Video Coding | ISO14496-10 Industry Standard |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps / HD1/D1: 2048Kbps ~ 400Kbps / 960H: 2048Kbps ~ 400Kbps / 720P:4096Kbps ~ 400Kbps |
| Audio Bit Rate | 40Kbps |
| Storage | 2 SD Card Slots, Up to 128GB each, Class 10 or higher |
| Alarm Input | 8 Channels, Select trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 1 Channel, 12V output |
| Communication Ports | RS485 / RS232 / RJ45 Network |
| GPS | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor | Supports 3 Axis Motion Detection with user set ranges for X, Y and Z coordinates |
| Software | PC Playback / IVMS |
| Software Upgrade | Upgrade through SD card or remotely via CMS/IVMS platform |
| Voltage Input | +8~+36V |
| Voltage Output | 12V(+/-0.2V),Max 3A |
| ACC Detection | ≤4V - Power Off // ≥6V - Power On |
| Video Input Resistance | 75Ω |
| Video Output Voltage | 2Vp-p |
| I / O Port | <1V - Low Voltage Trigger // >5V - High voltage trigger |
| Operational Temperature | -25°C ~ 75°C |
| Dimensions | 170 x 142 x 50 mm |
