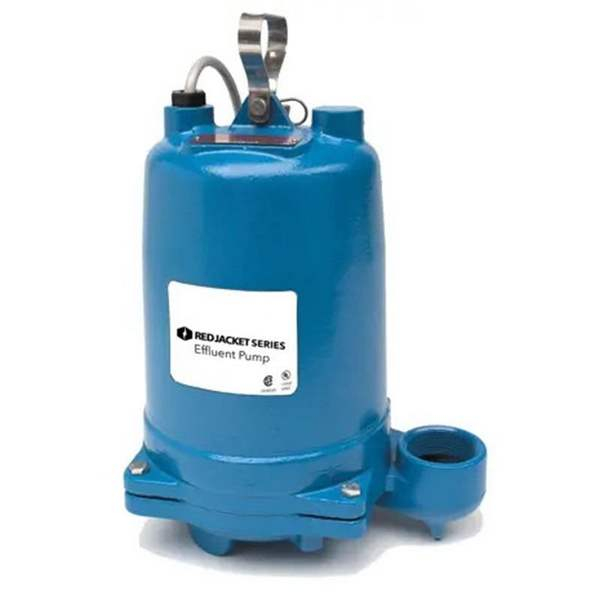

Petersen P2WS1534BHF Pump, Red Jacket 1-1/2 HP 460/60/3 2" Solids
- Part #:P2WS1534BHF
- Model #:Red Jacket
- Condition:Brand New

Description
Submersible effluent pumps are specifically designed for on-site wastewater treatement for light commercial and residential wastewater applications.
Features:
- Impeller: Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection; Balanced for smooth operation; Silicon bronze impeller available as an option
- Casing: Cast iron volute type for maximum efficiency
- Premium mechanical seal design provides superior protection against sand and abrasive damage (Silicon Carbide/Silicon Carbide/BUNA)
- Long lasting & corrosion resistant stainless steel hardware and threaded shaft
- Locknut on all models to guard against component damage on accidental reverse rotation
- Capable of running dry without damage to components
- Designed for continuous operation when fully submerged
⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Description | Pump, Red Jacket 1 1/2 Hp 460/60/3 2" Solids |
| Discharge Size | 2" NPT Discharge |
| Full Load Motor Eff. | 77.5 |
| Horsepower | 1.5 |
| Impeller Dia. (in) | 4.00" |
| KVA Code | K |
| LRA | 15.8 |
| Max Capacity | 220 GPM |
| Max Submergence | N/A |
| Max. Amps | 4.8 |
| Max. Solid Size | 2" |
| Phase | 3 |
| Power Cord Length | 20' |
| RPM | 3500 |
| Resistance Line-Line | 11.5 |
| Resistance Start | N/A |
| Shipping Wt. | 92 lbs |
| Temperature Limit | 104 F (40 C) Coninuous, 140 F (60 C) intermittent |
| Total Head Up To | 81 feet TDH |
| Volts | 460 |
