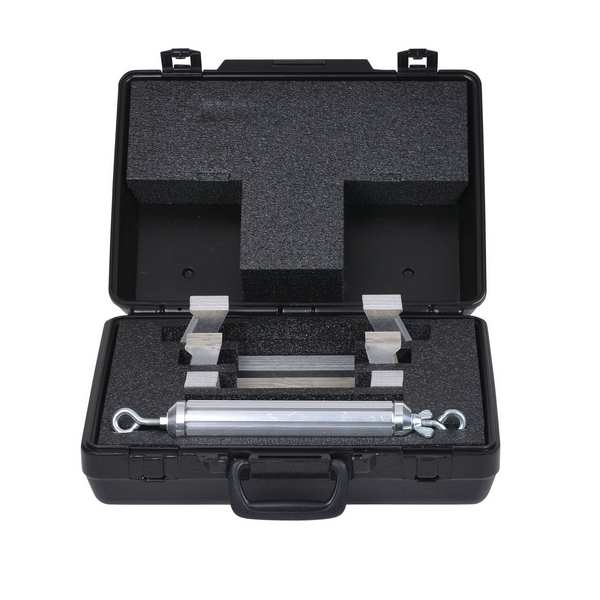

Petersen 938-9612-265 Deflection Gauge Aluminum Fin Sets, 8"-12" SDR 26, 5% Deflection
- Part #:938-9612-265
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingDescription
Features:
- Lightweight, corrosion-resistant
- Field-verifiable without a proving ring
- Assembles without tools
- Fins gauges have skid size equal to the nominal pipe size-gauge to meet regional codes and will not tip in the line
- Fin Style Deflection Gauges are designed to be field verified by inspectors without the use of a proving ring.
- Simply place two fins end to end and measure the width.
- Add one inch to the mandrel and you have the outside dimension of the gauge. Using this method simplifies the inspector's job of verifying sizes on deflection gauges.
Field Verification:
- Fin Style Deflection Gauges are designed to be field verified by inspectors without the use of a proving ring. Simply place two fins end to end as pictured to the right and measure the width.
- Add one inch to the mandrel and you have the outside dimension of the gauge. Using this method simplifies the inspector's job of verifying sizes on deflection gauges.
⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Average Pipe I.D. | 7.715"-9.644"-11.48" (195.96mm-244-96mm-291.59mm) |
| Base Pipe I.D. | 7.488"-9.342"-11.102" (190.2mm-237.29mm-281.99mm) |
| Country of Origin | USA |
| Deflection Test | 5% |
| Nominal Size | 8" (203.2mm), 10" (254mm), 12" (304.8mm) |
| Pipe I.D. @ Deflection | 7.11"-8.87"-10.55" (180.59mm-225.3mm-267.97mm) |
| Pipe Type | SDR 26 |
| Sage Subcategory Number | W9386 |
| Shipping Wt. | 19 Lb (8.62 Kg) |
