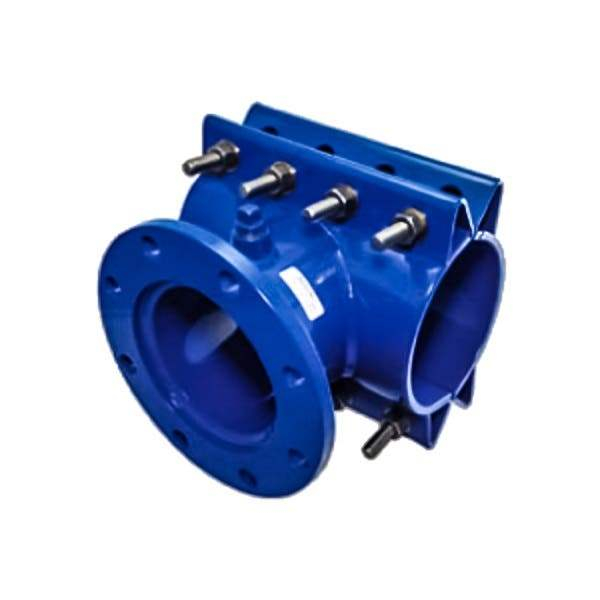

Petersen 910-4304-030450 Hot Tap Sleeve, 4" x 3", 150 Lb Flanged
- Part #:910-4304-030450
- Model #:910-4 Series
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingThese hot tap sleeves are fast and easy to install with simple hand tools, require no caulking or special equipment and may be used with any standard tapping valve. The steel pipe sleeve design directly reinforces without shims or pads and weighs less than heavy cast iron sleeves. The self-energizing gasket will not roll or bind on installation and the seal increases with line pressure. The generous cross section of the metal pipe sleeve assures a good seal even on rough or pitted pipe. These tapping sleeves consist of two sections of heavy welded steel that bolt together on the pipe and seal against a concave wedge gasket around the tap opening. The outlet half has a recessed flat faced flange to mate with standard tapping valves per MSS SP60 up through 12" size-on-size. The outlet half also has a 3/4" npt test plug.
Material Specifications:
- Body is made of carbon steel,
- Flanges of AWWA C207 Class D,
- ANSI 150 lb. drilling,
- Gasket is Nitrile,
- Bolts, nuts, and washers are of a high strength low alloy steel with heavy semi-finished hexagon nuts,
- the Finish is fusion bonded Fexi-Coat epoxy, coated to an average of 12 mil thickness.
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Bolt Size | 4"-6" Nominal Pipe = 5/8"-11UNC x 6" Long, Oval Neck Track Head |
| Comment 1 | * HDPE Requires Custom Gasket for Thermal Expansion and Contraction |
| Finish | Epoxy |
| Material, Body | Carbon Steel |
| Material, Hardware | High Strength Low Alloy (HSLA) Steel per AWWA C111/A21.11-with Rolled Threads |
| Material, Seal | Nitrile |
| Nominal Size | Pipe X Flange 4"X3" (102mmX76mm) |
| Outlet Connection | 3", 150 Lb Flange |
| Pipe OD Range | 4.50" (114mm) |
| Pipe Type | Carbon Steel, Stainless Steel, Cast Iron, Asbestos Cement, PVC, Ductil Iron, HDPE* |
| Pressure, PSI | Working Pressure 175 psi (12.06 bar) |
| Sage Subcategory Number | W9104 |
| Shipping Wt. | 34 Lb (15.42 Kg) |
| Temperature Rating F | Range -20°f to 180° f (-28.88° c to 82.22° c) |
