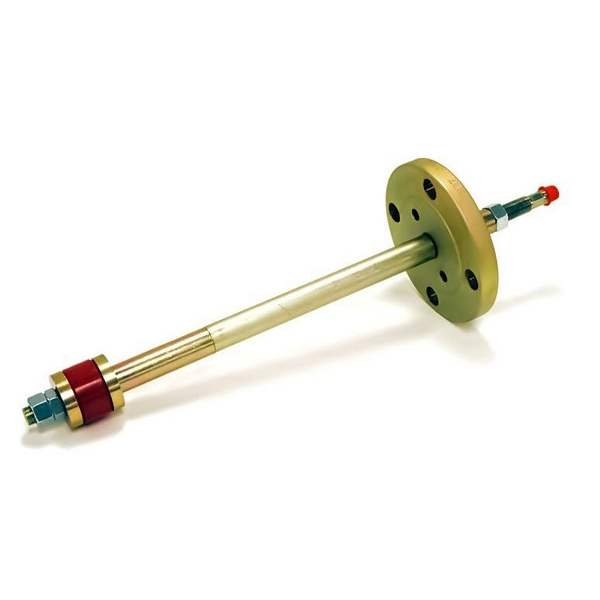

Petersen 151-3010-S160 1" High Lift Flange Weld Mechanical Pipe Plug, Class 300 Lb, SCH 160
- Part #:151-3010-S160
- Model #:151 Series
- Condition:Brand New
- List Price: $1,290.00
- $1,283.60 / EachYou Save: 0.5%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $1,290.00
- $1,283.60 / EachYou Save: 0.5%
- Free Shipping
Description
A 151-series flange hydro test plug allows you to monitor upstream conditions, isolate and purge the weld area, perform the weld and hydro test the weld joint with only one tool.
Features:
- Fast, easy installation, and testing.
- Segmented compression tube allows adjustment of seal installation depth.
- Faster pipe repairs and retrofits.
- Improved Seal-to-Pipe Clearance: Plug can be easily installed and removed even where there is severe weld protrusion.
- Low water requirements resulting in less waste water.
- A minimum of 1.5:1 safety factor.
- High pressure flange with rugged, heavy-duty construction.
- Versatile: Seal and washer sets easily change to accommodate different pipe schedules.
- Ported Center Shaft allows for upstream monitoring.
- Flange classes 150 - 600 lbs.
- Seal Materials: Urethane Standard.
- Flange style is Raised Face type.
⚠️ Attention CA Residents: Prop 65 Warning
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Country of Origin | USA |
| Dim. L1-A IN | 12" (305mm) |
| Dim. L2 Max. IN | 14-1/4" (362mm) |
| Dimension L1-B IN | 3" (76.2mm) |
| Dimension L3 IN | 1-1/4" (31.8mm) |
| Dimension L4 IN | 24-11/16" (627mm) |
| Flange Class | 300 Lb (136.08 Kg) |
| Flange Size | 1" DN25 |
| Material, Body | Steel, Plated |
| Material, Seal | Polyurethane |
| Pipe Type | SCH 160 |
| Press. Pipeline Max | 1,125 Psi (77.6 Bar) |
| Sage Subcategory Number | W151 |
| Seal To Pipe Clearance | 0.11" (2.8mm) |
| Shipping Wt. | 11 Lb (4.98 Kg) |
| Style | End of Pipe Plug |
| Temperature Max. Service F | 176 F (80 C) |
| Vent/Fill Port Size | 1/8" (3.2mm) F |
