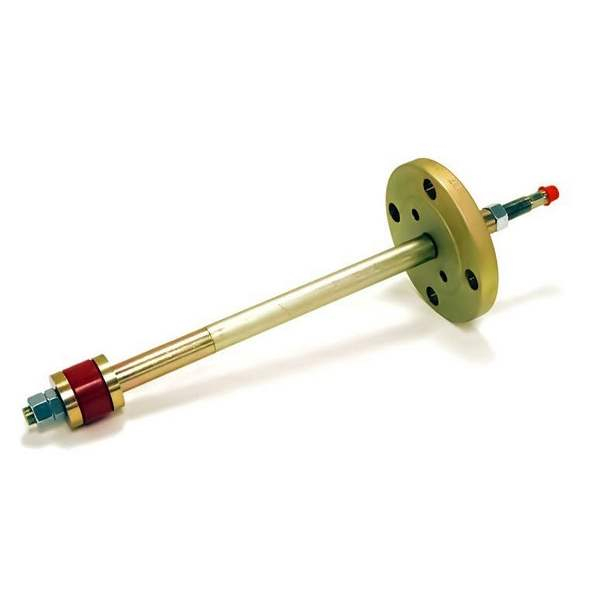

Petersen 151-1015-S10 1-1/2" High Lift Flange Weld Mechanical Pipe Plug, Class 150 Lb, SCH 10
- Part #:151-1015-S10
- Model #:151 Series
- Condition:Brand New
- List Price: $1,600.00
- $1,592.00 / EachYou Save: 0.5%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $1,600.00
- $1,592.00 / EachYou Save: 0.5%
- Free Shipping
Petersen 151-1015-S10 1-1/2" High Lift Flange Weld Mechanical Pipe Plug, Class 150 Lb, SCH 10
The Petersen 151-1015-S10 is a high lift flange weld mechanical pipe plug designed for efficient pipeline testing and welding. It allows for monitoring upstream conditions, isolating and purging the weld area, performing the weld, and hydro-testing the joint with a single tool. This plug offers fast and easy installation, adjustable seal depth, and versatile use for various pipe schedules.
Key Features:
- Fast and easy installation and testing
- Segmented compression tube for adjustable seal depth
- Faster pipe repairs and retrofits
- Improved seal-to-pipe clearance for easy installation and removal
- Low water requirements
- Minimum 1.5:1 safety factor
- High-pressure flange with rugged construction
- Versatile seal and washer sets for different pipe schedules
- Ported center shaft for upstream monitoring
Specifications:
- Size: 1-1/2"
- Flange Class: 150 lb
- Pipe Schedule: SCH 10
- Seal Material: Urethane (standard)
- Flange Style: Raised Face
Applications:
- Pipeline testing and welding
- Hydro-testing weld joints
- Isolating and purging weld areas
- Monitoring upstream conditions
Kit Contents:
- 1 x Petersen 151-1015-S10 Flange Weld Mechanical Pipe Plug
Performance and Characteristics:
- Efficient and versatile
- Reliable sealing for testing
- Durable and long-lasting
- Easy to use and maintain
Streamline your pipeline testing and welding with the Petersen 151-1015-S10 High Lift Flange Weld Mechanical Pipe Plug. Experience efficient and reliable performance for your critical pipeline operations.
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Country of Origin | USA |
| Dim. L1-A IN | 12" (305mm) |
| Dim. L2 Max. IN | 15-1/8" (384mm) |
| Dimension L1-B IN | 3-3/8" (86mm) |
| Dimension L3 IN | 1-3/4" (44.5mm) |
| Dimension L4 IN | 20-3/8" (518mm) |
| Flange Class | 150 Lb (68.04 Kg) |
| Flange Size | 1-1/2" DN40 |
| Material, Body | Steel, Plated |
| Material, Seal | Urethane |
| Pipe Type | SCH 10 |
| Press. Pipeline Max | 450 Psi (31 Bar) |
| Sage Subcategory Number | W151 |
| Seal To Pipe Clearance | 0.17" (4.3mm) |
| Shipping Wt. | 11 Lb (4.98 Kg) |
| Style | End of Pipe Plug |
| Temperature Max. Service F | 176 F (80 C) |
| Vent/Fill Port Size | 1/4" (6.35mm) F |
