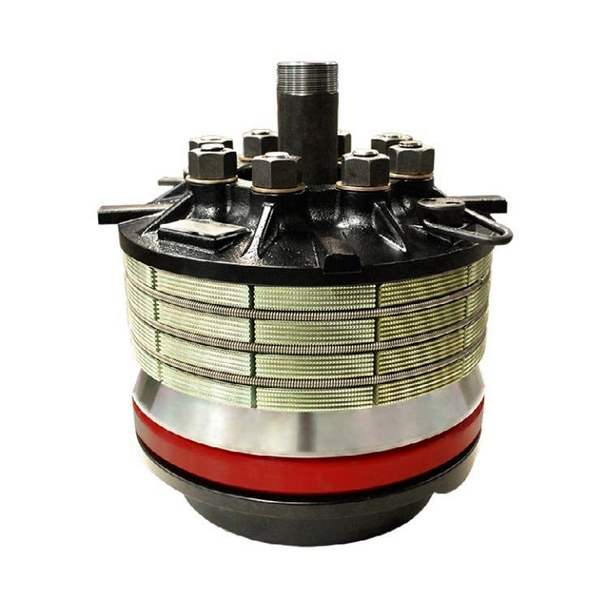

Petersen 147-1180-P10M 147-1 Series Pipe Plug, Mechanical, Hp Test, 18" Dia, Sch10, 2" NPT Bypass

High Pressure Hydrostatic Test Plugs use the test pressure to help seal more securely against the pipe's inner diameter.

Features:

• Easy installation - no welding required
• Increased safety - dual-serrated gripper design uses test pressure to increase holding capabilities
• Saves up to 85% in testing time vs. welded-on end cap procedures
• Hardened shaft, cone, and grippers increases durability
• Laser-marked top washer for easy identification, storage, and traceability
• Facilitates testing in hardened materials up to HRC32
• Complies with ASME Boiler and Pressure Vessel Codes

Typical Applications:

• Force and water main
• Lift stations
• Nuclear cooling lines
• Fire protection lines
• Special plant situations
• Irrigation supply lines
• and many other projects.

IMPORTANT:

• NEVER use a test pressure greater than the weakest component in the system can handle. The test pressure for higher and lower strength pipes will differ proportionally. The maximum test pressure for higher strength pipe must never exceed the highest test pressure listed for that pipe O.D.
• Sizes that do not have a test pressure listed differ from standard pipe sizes. These Hydrostatic test plug sizes are normally used to test tubing. For use of these plug sizes in tubing with a minimum yield strength of 35ksi, the maximum test pressure is estimated by the test pressure listed for the equivalent or next larger pipe O.D. with the equivalent or next thinner wall thickness. The test pressure for higher and lower strength tubes will differ proportionally. The maximum test pressure for higher strength tubes must never exceed the highest test pressure listed for the equivalent or next larger pipe size. NEVER use a test pressure greater than the weakest component in the system can safely handle
