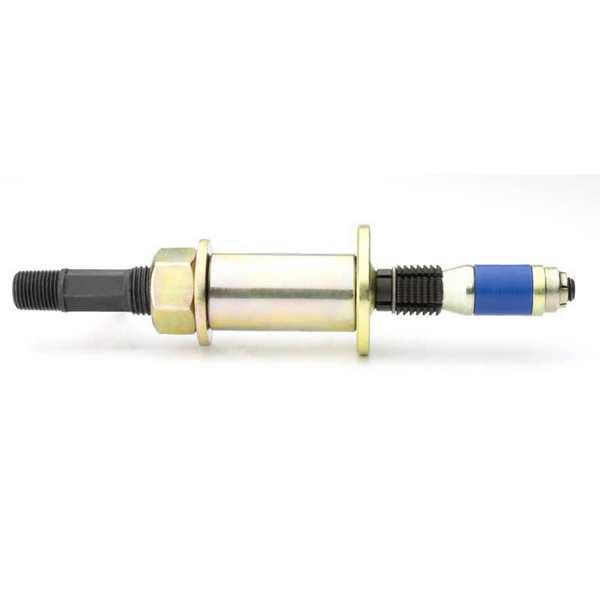

Petersen 147-1005-P160 0.5" Dia Very High PSI Mechanical Pipe Plug, Sch-160, 1/8" Bypass
- Part #:147-1005-P160
- Model #:147-1 Series
- Condition:Brand New
- List Price: $638.00
- $634.80 / EachYou Save: 0.5%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $638.00
- $634.80 / EachYou Save: 0.5%
- Free Shipping
Description
High Pressure Hydrostatic Testing Plugs
High Pressure Hydrostatic Test Plugs use the test pressure to help seal more securely against the pipe's inner diameter.
Applications:
- Force and water main
- Lift stations
- Nuclear cooling lines
- Fire protection lines
- Special plant situations
- Irrigation supply lines
- and many other projects
Features:
- Easy installation - no welding required
- Increased safety - dual-serrated gripper design uses test pressure to increase holding capabilities
- Saves up to 85% in testing time vs. welded-on end cap procedures
- Hardened shaft, cone, and grippers increases durability
- Laser-marked top washer for easy identification, storage, and traceability
- Facilitates testing in hardened materials up to HRC32
- Complies with ASME Boiler and Pressure Vessel Codes
⚠️ Attention CA Residents: Prop 65 Warning
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| By-Pass Flow Through Cap Type | Not Included |
| By-Pass Size | 1/8" MNPT |
| Country of Origin | USA |
| Depth, Full Installation | 2.07" (52.6mm) |
| Functional ID Range | 0.57"-0.63" (14.5mm-16mm) |
| Hex Nut Wrench Size | 3/4" |
| Length, Gripper | 0.68" (17.2mm) |
| Length, Seal to Gripper | 1.48" (37.7mm) |
| Lngth, Overall | 5.31" (134.9mm) |
| Material, Body | Zinc-Plated Steel |
| Material, Hardware | Zinc Plated Steel, SS Flex Locknuts |
| Material, Seal | Urethane |
| Nominal Pipe | 0.5" (12.7mm) |
| Pipe Schedule | 40 |
| Plug OD | 0.54" (13.7mm) |
| Press., Max Test, PSI | 15,000 psi (1034 bar) |
| Sage Subcategory Number | W147 |
| Shaft Hex Wrench Size | 3/8" |
| Shaft/Port I.D. | 0.11" (2.8mm) |
| Shipping Wt. | 0.5 Lb (0.23 Kg) |
| Total Clearance From Min. I.D. | 0.03" (0.8mm) |
| Type | 1 |
