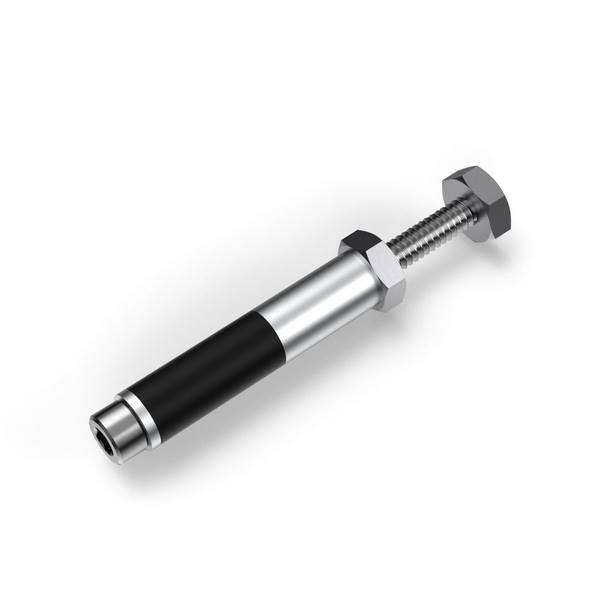

Petersen 146-90022- 0.21"-0.23" Dia Medium Pressure Mechanical Pipe Plug

Petersen 146-90022- 0.21"-0.23" Dia Medium Pressure Mechanical Pipe Plug

The Petersen 146-90022- 0.21"-0.23" Dia Medium Pressure Mechanical Pipe Plug offers a simple and reliable solution for pipeline testing up to 300 psig (20.7 bar).
This single shaft bolt plug features a neoprene seal that expands to create a secure seal without damaging the tube wall.
Its plated carbon steel construction ensures durability, and its compatibility with various pipe and tubing sizes makes it a versatile choice for a range of applications.

Key Features:

• 0.21"-0.23" diameter for use in small to medium pipe and tube sizes.
• Medium pressure rating up to 300 psig (20.7 bar).
• Mechanical bolt design for secure and reliable sealing.
• Neoprene seal (for sizes smaller than .375") for effective sealing and tube wall protection.
• Nitrile seal (for sizes .375" and larger) for hydrocarbon resistance.
• Plated carbon steel construction for durability and corrosion resistance.
• Single shaft design for easy installation and removal.
• Customizable for various size, pressure, chemical, and pressure requirements.

Specifications:

Diameter: 0.21"-0.23"
Pressure Rating: Up to 300 psig (20.7 bar)
Seal Material: Neoprene (for sizes smaller than .375"), Nitrile (for sizes .375" and larger)
Material: Plated Carbon Steel
Design: Single Shaft
Note: Caps are not included with plugs

Applications:

Pipeline testing and maintenance.
Industrial and manufacturing applications.
Hydraulic and pneumatic systems.
Pressure testing of various pipe and tube sizes.

Performance and Characteristics:

Provides a secure and reliable seal without tube wall damage.
Easy to install and use.
Durable and corrosion-resistant.
Versatile for various pipe and tubing sizes.
