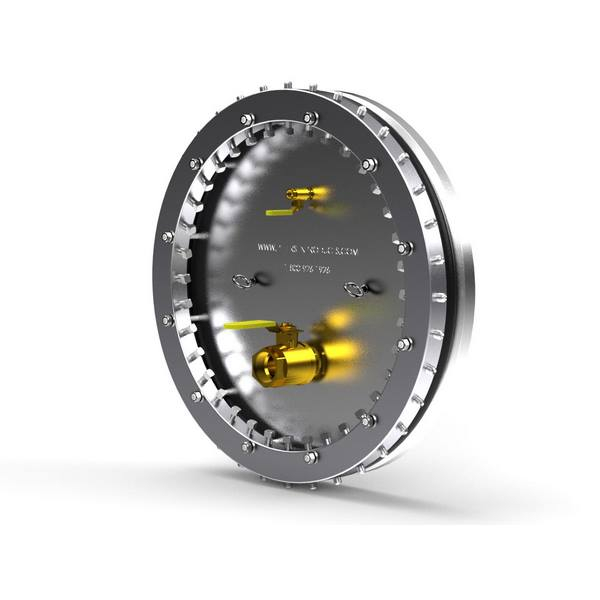

Petersen 145-9298- 145-9 Series Pipe Plug, Mechanical, High Pres., 29.8"-30.8"dia, Mech Seal
- Part #:145-9298-
- Model #:145-9 Series
- Condition:Brand New
Description
Features:
- Standard seal pipe plug is Aluminum body with steel hardware and solid nitrile seal.
- Easy installation, replaceable seals, positive seal and engineered to restrain rated pipeline pressure
Typical Applications:
- Force and water main
- Lift stations
- Nuclear cooling lines
- Fire protection lines
- Special plant situations
- Irrigation supply lines
- and many other projects where isolation is required for testing and construction.
⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| By-Pass | 2" F |
| Country of Origin | USA |
| Dia. Max | 30.875" (784mm) |
| Dia. Min | 29.875" (759mm) |
| Lngth, Overall | Approx. 6.875" (174.63mm) |
| Lngth, Seal | 1.5" O-Ring |
| Material, Body | Aluminum |
| Material, Hardware | Steel |
| Material, Seal | Nitrile |
| Pipeline Max PSI | 100 psi (6.89 bar) |
| Plug Slip Restraint Method | Integral ID or OD set screw restraint |
| Positioning Wheel Location | Bottom |
| Pressure Pipeline Max Head | 231 ft (70.41 m) |
| Sage Subcategory Number | W1459 |
| Seal Expansion System | Hex Nut |
| Shipping Wt. | 146 Lb (66.23 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
| Torque Required, Anchor Setscrew | 92 ft-lbs |
| Torque Required, Seal Expansion | 22 ft-lbs |
| Vent Valve, Near Top of Plug, NPT | 3/8 |
