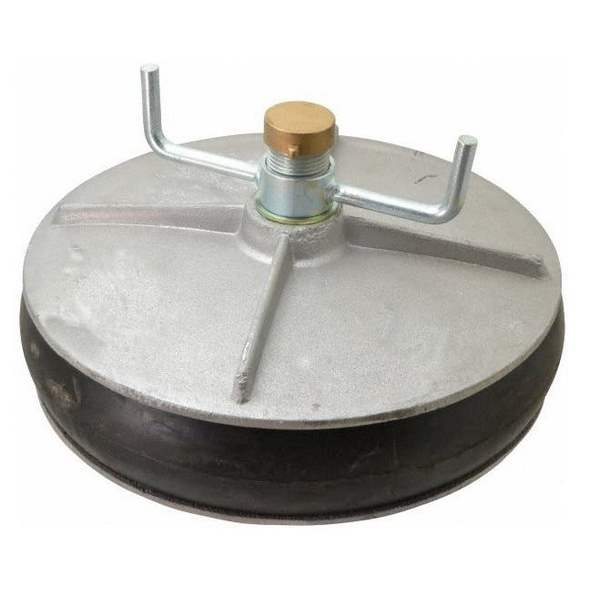

Petersen 141-0140- 13.8"-15.1" Dia Mechanical Hand Tight Pipe Plug, 1.0 BSPP
- Part #:141-0140-
- Model #:141-0 Series
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingDescription
Pipe Plug, Low Pressure Bypass, 141-0 Series
Features:
- Lightweight aluminum pipe plugs, up to 70% lighter than similar steel plugs.
- By Pass fill or vent threaded with removable cap.
- Durable cast aluminum body
- Plated steel wing nut or tee handle seal expansion
- Natural Rubber Seal is most effective at mid-range of expansion
- Most Effective at Mid-Range of Expansion
- Other configurations available for most sizes, pressure, chemical, and temperature requirements
⚠️ Attention CA Residents: Prop 65 Warning
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| By-Pass | 1.0 BSPP |
| Country of Origin | UNITED KINGDOM |
| Dia. Max | 15.1" (384.54mm) |
| Dia. Min | 13.8" (350.52mm) |
| Handle Width | 11.024" (280.01mm) |
| Lngth, Overall | 7.284" (185.01mm) |
| Lngth, Seal | 2.363" (60.02mm) |
| Material Cap | Brass |
| Material, Body | Aluminum |
| Material, Hardware | Zinc-Plated Steel |
| Material, Seal | Natural Rubber |
| Nominal Pipe | 14" (355.6mm) |
| Pressure, PSI | Not Rated |
| Sage Subcategory Number | W141 |
| Seal Expansion System | 11" Plated Steel T-Handle |
| Shipping Wt. | 11.5 Lb (5.22 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 120 f (48.89 c) |
