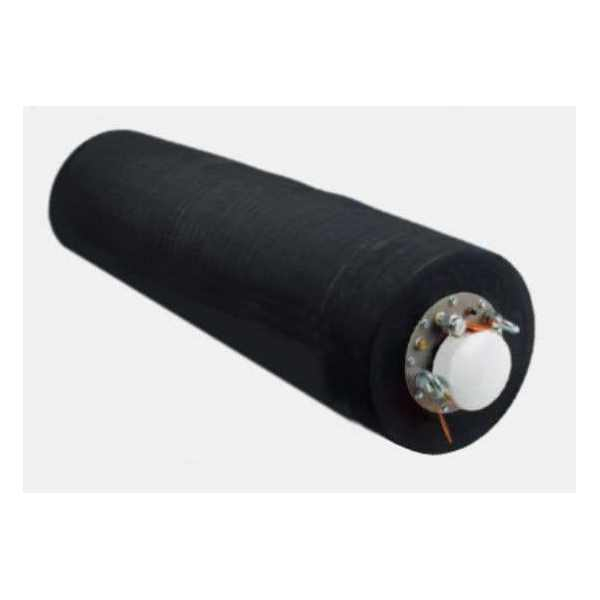

Petersen 130-232-20 15"-32" Dia Inflatable Municipal Style Pipe Plug, 2" MNPT Bypass
- Part #:130-232-20
- Model #:130-2 Series
- Condition:Brand New
These round pipe plugs provide for testing and/or monitoring of piping systems. They are ideal for installation and repair of residential or commercial piping systems.
Inflation for smaller diameter plugs is Shrader type tire valve and larger diameter plugs inflate through a 1/4" npt tire valve allowing replacemet with a quick disconnect fittings. These flexible Muni Ball bypass test plugs are bendable to 90°.
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| By-Pass | 2" MNPT One End |
| Country of Origin | USA |
| Dia. Deflated | 14.3" (363mm) |
| Dia. Max | 32" (800mm) |
| Eye Bolt, No. | 3/4" (2) |
| Infl. Press. Required | 25 psi (1.72 bar) |
| Inflation Protection | Rupture Disc or Pressure Relief Valve on all Plugs 15-23" Dia. and Larger |
| Length Deflated | 63" (1600mm) |
| Material, Body | Molded Natural Rubber |
| Material, Metal Components | Aluminum and Plated Carbon Steel |
| Nominal Size | 15"-32" (375mm-800mm) |
| Port, Inflation | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) |
| Press. Pipeline Max | n/a |
| Sage Subcategory Number | W1302 |
| Shipping Wt. | 80 lbs (36.3 Kg) |
| Temperature Max. Service F | 140 F (60 C) |
