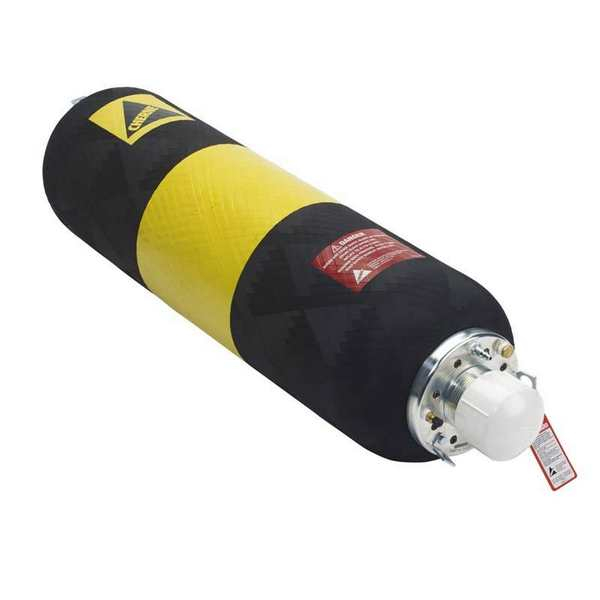

Petersen 130-212-1 6"-12" Dia Inflatable Municipal Style Pipe Plug, 1" MNPT Bypass

Overview

This versatile inflatable municipal style pipe plug, the Petersen 130-212-1 6"-12" Dia Pipe Plug, is engineered for efficient testing and monitoring of plumbing and piping systems. It effectively addresses the challenge of isolating sections of residential or commercial piping during installation, repair, or inspection, providing a reliable seal for pressure testing or flow bypass. Crafted from durable molded natural rubber with robust aluminum and plated carbon steel components, this flexible Muni Ball bypass test plug offers superior adaptability, capable of bending up to 90 degrees to navigate pipe bends. Its integrated 1" MNPT bypass allows for convenient flow-through capabilities, making it an indispensable tool for plumbers, municipal workers, and construction professionals requiring secure and adaptable pipe isolation solutions.

Key Features

• Flexible 90° Bend Capability: Constructed to bend up to 90 degrees, allowing for effective sealing even in curved piping sections.
• Integrated 1" MNPT Bypass: Features a convenient flow-through bypass, enabling continuous flow or monitoring during pipe isolation.
• Durable Construction: Made from molded natural rubber with aluminum and plated carbon steel components for enhanced longevity and resistance in harsh environments.
• Wide Nominal Size Range: Designed for pipe diameters from 6 inches to 12 inches (150 mm to 300 mm), offering broad application versatility.
• Easy Inflation: Inflates via a 1/8" Male QD to 1/8" MNPT port, compatible with standard inflation fittings, for quick and secure deployment.

Specifications

Product Name: Petersen 130-212-1 6"-12" Dia Inflatable Municipal Style Pipe Plug

Nominal Size: 6"-12" (150 mm-300 mm)

Diameter, Deflated: 5.5" (140 mm)

Diameter, Max: 12.25" (310 mm)

Length Deflated: 25" (635 mm)

Bypass Flow Through: 1" MNPT One End

Material, Body: Molded Natural Rubber

Material, Metal Components: Aluminum and Plated Carbon Steel

Port, Inflation: 1/8" Male QD To 1/8" MNPT

Pressure, Inflation Required: 45 psi (3 bar)

Pressure, Pipeline Max: See First Back Pressure Chart (N/A in provided data)

Temperature Max. Service: 140°F (60°C)

Shipping Wt: 10 Lbs (4.54 Kg)

Country of Origin: USA

Eye Bolt: 3/8" (1) Positioning Eyelet on Inflation End Plate

Applications

Ideal for plumbing contractors, municipal water and wastewater departments, and construction crews specializing in piping infrastructure. This inflatable pipe plug is perfect for leak testing new residential and commercial drainage lines, performing localized repairs on sanitary or storm sewer systems, or diverting flow during maintenance operations in utility networks. Its flexibility makes it indispensable for challenging installations where pipe bends or irregular shapes necessitate a highly adaptable sealing solution, ensuring accurate pressure tests and efficient system management.

Performance and Characteristics

The Petersen 130-212-1 pipe plug is engineered for reliable performance in demanding municipal and commercial applications. Its molded natural rubber body provides excellent sealing capabilities across its 6-inch to 12-inch nominal diameter range, withstanding required inflation pressures of 45 psi (3 bar). The innovative design allows for a 90-degree bend, significantly enhancing its utility in complex piping layouts where rigid plugs would fail. The 1" MNPT bypass port maintains operational continuity, allowing for monitoring or flow redirection without completely deactivating the system. This robust construction ensures durability and a long service life in challenging underground or industrial environments, minimizing downtime during critical pipe system work.

Additional Information

Manufactured in the USA, the Petersen 130-212-1 pipe plug adheres to high standards of quality and reliability for professional use. Its combination of resilient natural rubber and corrosion-resistant aluminum and plated carbon steel components ensures robust performance in various pipe materials and environmental conditions. The integrated eye bolt facilitates easy positioning and retrieval, crucial for safe and efficient operations in confined spaces or deep trenches. This plug is a testament to precision engineering designed to simplify complex pipe testing and maintenance tasks.

Kit Contents

• 1 x Petersen 130-212-1 6"-12" Dia Inflatable Municipal Style Pipe Plug

Ensure precise pipe system testing and maintenance. Shop the Petersen 130-212-1 Inflatable Municipal Style Pipe Plug today!
