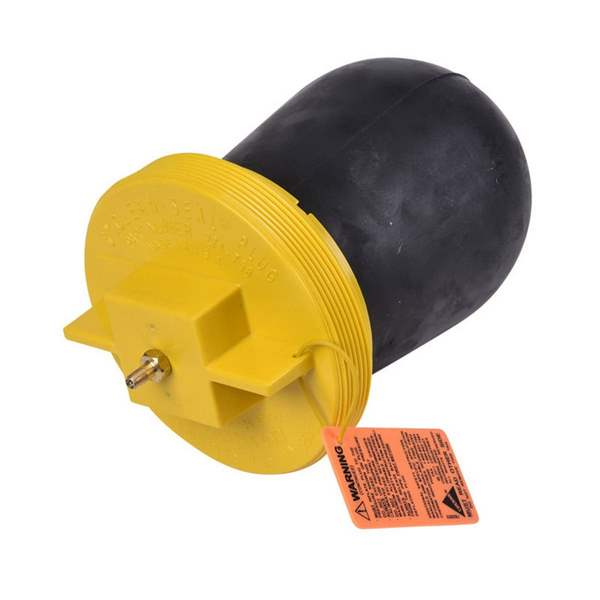

Petersen 130-1060- 6" Dia Inflatable Rubber Stack Test Style Pipe Plug
- Part #:130-1060-
- Model #:130-1 Series
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingDescription
Designed for stack testing of drain, waste, and vent plumbing systems, 130-1 Stack Test Style Rubber Test plugs thread into a standard test tee. The bladder is inflated and then water is introduced into the pipe. Upon test completion, deflate the test tee plug bladder; water travels down the pipe, eliminating test water backsplash.
Features:
- Stack testing equipment works in both plastic and cast-iron test tees
- Natural rubber body provides a leak-free seal
- High-impact ABS threads for maximum durability
- Removable/replaceable tire inflation valve fitting
⚠️ Attention CA Residents: Prop 65 Warning
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| By-Pass | None |
| Country of Origin | USA |
| Dia. Deflated | 6.63" (168mm) |
| Dia., Seal Max | 6" (150mm) |
| Infl. Press. Required | 25 psi (1.7 bar) |
| Length Deflated | 11" (280mm) |
| Material, Body | Natural Rubber |
| Material, Seal | Natural Rubber |
| Nominal Size | 6" (150mm) |
| Port, Inflation | 1/4" Schrader Tire Valve |
| Press. Pipeline Max | 13 psi (0.9 bar)/30 ft (9.1 m) |
| Sage Subcategory Number | W1301 |
| Shipping Wt. | 4 Lbs (1.81 Kg) |
| Temperature Max. Service F | 120 F (48.89 C) |
