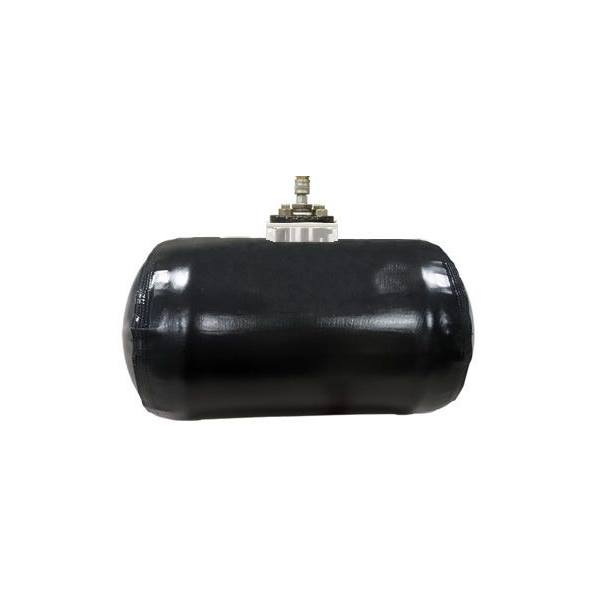

Petersen 129-004- Petestop 4" Dia Inflatable Line Stop Pipe Plug
- Part #:129-004-
- Model #:Petestop 129 Series
- Condition:Brand New

Quickly Block the flow without depressurizing the pipeline!
The Petersen® PeteStop™ 129-Series Line Stop is best selling system. It is a great choice to complement a mechanical stop or use in place of because of its savings in time, money and lighter, more flexible installation. Plus the PeteStop® Inflatable Line Stop is able to handle more difficult pipe conditions where a mechanical stop would be unable to get a workable seal.
Features:
- Faster - smaller lighter weight equipment
- Less Expensive - smaller hole and smaller equipment needed, less time to complete
- Safety Enhanced - smaller tap hole and larger surface area means less stress on pipe
- Lower Environmental Risk - smaller tap hole
- Plug Abnormal Pipe Conditions - Heavy Corrosion, Out-of-Round Pipe, Weld Bead, etc.
- Versatility - Most pressure, chemical, temperature requirements
- Limited Space Work Environment
- Minimal pressure to seal on pipe ID
- Multiple combinations - Double Block & Bleed, Centered, Off-Center, Side, Flow Stop, High Pressure
- Reusable - Heavyweight Ballistic Nylon reinforced Polyeurethane
- Conform to the pipe better
- Line Stop at pipe bend or near pipe bend
- Less Stress on Pipe with Structural Integrity Issues or Aging Pipe versus Mechanical Stop
- Great Complement to Mechanical Stop where there isn't a workable seal
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Country of Origin | USA |
| Dia. Deflated | 3.75" (95mm) |
| Dia. Hot Tap Hole, Min | 3.875" (98mm) |
| Dia. Max | 4" (102mm) |
| Length Deflated | 11" (279mm) |
| Length, Cylinder Contact | 9" (229mm) |
| Length, Overall, Inflated, IN | 11" (279mm) |
| Material, Hardware | Aluminum and Plated Carbon Steel |
| Material, Outer Ply | Ballistic Nylon Reinforced Polyurethane |
| Package Dimensions | 12" X 4" X 4" |
| Port Location, Infl. | Centered on Diameter |
| Port, Inflation | 1" Inflation Ram Adapter |
| Pressure Pipeline Max Head | 80 psi (5.52 bar)/184.5' (56.25 m) |
| Pressure, Inflation Max | 160 psi (11.03 bar) |
| Sage Subcategory Number | W129 |
| Shipping Wt. | 4 Lb (1.81 Kg) |
| Temperature Max. Service F | 225 F (107.22 C) |
