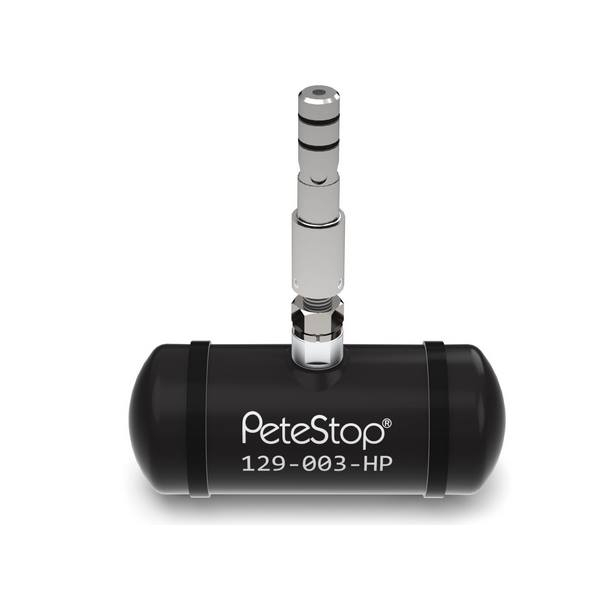

Petersen 129-003-HP Petestop 3" Dia Inflatable Line Stop High Pressure Pipe Plug
- Part #:129-003-HP
- Model #:Petestop 129HP Series
- Condition:Brand New

Quickly Block the flow without depressurizing the pipeline!
The Petersen® PeteStop™ 129-Series Line Stop is best selling system. It is a great choice to complement a mechanical stop or use in place of because of its savings in time, money and lighter, more flexible installation. Plus the PeteStop® Inflatable Line Stop is able to handle more difficult pipe conditions where a mechanical stop would be unable to get a workable seal.
Features:
- Faster - smaller lighter weight equipment
- Less Expensive - smaller hole and smaller equipment needed, less time to complete
- Safety Enhanced - smaller tap hole and larger surface area means less stress on pipe
- Lower Environmental Risk - smaller tap hole
- Plug Abnormal Pipe Conditions - Heavy Corrosion, Out-of-Round Pipe, Weld Bead, etc.
- Versatility - Most pressure, chemical, temperature requirements
- Limited Space Work Environment
- Minimal pressure to seal on pipe ID
- Multiple combinations - Double Block & Bleed, Centered, Off-Center, Side, Flow Stop, High Pressure
- Reusable - Heavyweight Ballistic Nylon reinforced Polyeurethane
- Conform to the pipe better
- Line Stop at pipe bend or near pipe bend
- Less Stress on Pipe with Structural Integrity Issues or Aging Pipe versus Mechanical Stop
- Great Complement to Mechanical Stop where there isn't a workable seal
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Country of Origin | USA |
| Dia. Deflated | 2.875 (73mm) |
| Dia. Hot Tap Hole, Min | 2.875 (73mm) |
| Dia. Max | 3" (76mm) |
| Length Deflated | 9" (229mm) |
| Length, Cylinder Contact | 6" (152mm) |
| Length, Overall, Inflated, IN | 7.5 " (191mm) |
| Material, Hardware | Aluminum and Plated Carbon Steel |
| Material, Outer Ply | Ballistic Nylon Reinforced Urethane |
| Port Location, Infl. | Centered on Diameter |
| Port, Inflation | .25" MNPT With 1" Ram Adapter |
| Pressure Pipeline Max Head | 100 psi (6.89 bar)/230.7 ft (70.3 m) |
| Pressure, Inflation Max | 200 psi (13.79 bar) |
| Sage Subcategory Number | W129 |
| Shipping Wt. | 4 Lb (1.81 Kg) |
| Temperature Max. Service F | 225 F (107.22 C) |
