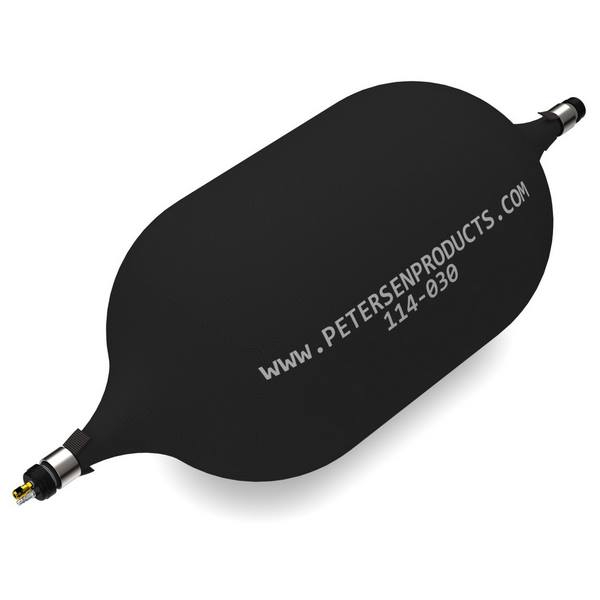

Petersen 114-030- 30" Dia Multi-Flex Medium Duty Inflatable Pipe Plug

Overview

This versatile Petersen 114-030 30" Dia Multi-Flex Medium Duty Inflatable Pipe Plug is engineered for high-expansion applications, particularly where hydrocarbon resistance is critical. Featuring a ballistic nylon reinforced nitrile outer ply, this plug offers exceptional puncture and tear resistance, coupled with superior chemical compatibility. Its flexible, gas-bag style design allows for easy navigation through small openings while expanding to effectively seal pipes up to 30 inches, making it ideal for blocking pipes in environments with oils, fuels, or other hydrocarbons.

Key Features

• Hydrocarbon Resistant: Nitrile outer ply provides excellent resistance to a wide range of hydrocarbons, including oils and fuels.
• High Expansion Applications: Designed for pipe diameters up to 30 inches (762mm), accommodating diverse pipe shapes and sizes.
• Puncture and Tear Resistant: Ballistic nylon reinforced nitrile outer ply offers exceptional durability and longevity.
• Extended Shelf Life: Synthetic materials contribute to many more years of shelf life compared to traditional molded rubber plugs.
• Navigates Small Openings: Small deflated diameter of just 6 inches (152mm) and high flexibility allow easy access through confined spaces.
• Conforms to Pipe Shapes: Heavy-duty design ensures the plug conforms to most pipe shapes for a secure seal.
• Connect in Series: Capability to connect in series for advanced double block and bleed applications.
• Compact Storage: Requires very small storage area, ideal for mobile crews and limited storage spaces.

Specifications

• Product Type: Multi-Flex Medium Duty Inflatable Pipe Plug
• Diameter, Max: 30" (762mm)
• Diameter, Deflated: 6" (152mm)
• Length Deflated: 82" (2083mm)
• Material, Outer Ply: Ballistic Nylon Reinforced Nitrile
• Comment 1: Nitrile Coating Resists Many Hydrocarbons
• Material, Metal Components: Aluminum and Carbon Steel
• Port, Inflation: 2" M - 1/2" QD Plug
• Port, Pressure Monitoring Size: 1/4" QD Cplg
• Pressure, Inflation Max.: 9 psi (0.62 bar)
• Pressure, Pipeline Max Head: 4.5 psi (0.31 bar) / 10.4' (3.16 m)
• Country of Origin: USA
• Package Dimensions: 21-5/8" X 19-5/8" X 9-3/8"
• Shipping Weight: 30 Lb (13.61 Kg)
• Temperature Max. Service: 200°F (93.33°C)

Applications

Essential for professional pipeline technicians, environmental remediation specialists, and industrial maintenance teams working in applications involving hydrocarbons such as oil and gas lines, fuel systems, or chemical processing. Ideal for temporary blocking during repairs, inspections, or diversions where chemical resistance and flexible access are paramount. Its ability to conform to various pipe shapes makes it suitable for non-circular pipes or those with internal irregularities.

Performance and Characteristics

The Petersen 114-030 Multi-Flex plug offers exceptional performance due to its ballistic nylon reinforced nitrile outer ply, providing robust resistance against punctures, tears, and a wide range of hydrocarbons. This synthetic construction ensures a significantly longer shelf life and more reliable performance compared to traditional rubber plugs. Its flexibility and small deflated diameter allow for easy insertion and conformation to complex pipe geometries. Designed for medium-duty use, it maintains an effective seal in pipeline applications with up to 4.5 psi (0.31 bar) of head pressure and withstands service temperatures up to 200°F (93.33°C).

Additional Information

Manufactured in the USA by Petersen Products, this advanced inflatable pipe plug is engineered for demanding professional environments requiring both high expansion and chemical resistance. The nitrile coating is specifically designed to resist many hydrocarbons, enhancing its versatility and safety. Proper inflation to a maximum of 9 psi (0.62 bar) is critical for safe and effective operation. Its ability to connect in series for double block and bleed applications adds a layer of safety and control for critical operations. The compact package dimensions ensure efficient storage and transport.

Ensure robust and hydrocarbon-resistant pipeline blocking. Invest in the Petersen 114-030 Multi-Flex Medium Duty Inflatable Pipe Plug for your operations today!
