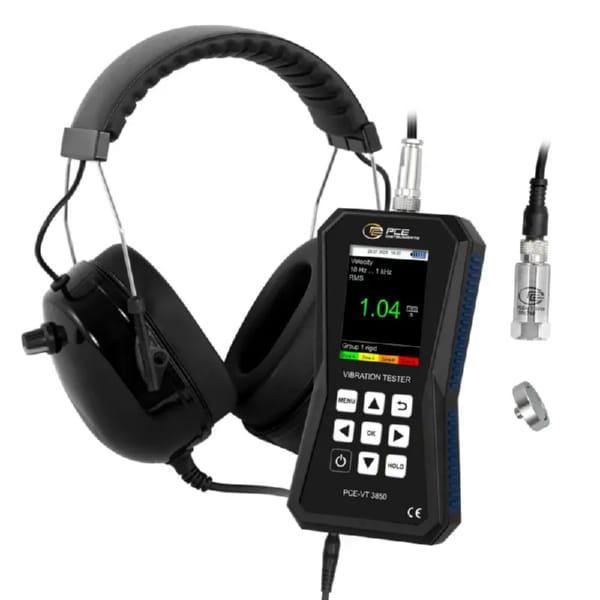

PCE Instruments PCE-VT 3850 Accelerometer with External Sensor

PCE Instruments PCE-VT 3850 Accelerometer with External Sensor

The PCE Instruments PCE-VT 3850 is an accelerometer with an external sensor designed for mobile vibration measurement on machines and plants. It measures vibration displacement (up to 3.9 mm), velocity (up to 399.9 mm/s), and acceleration (up to 399.9 m/s²). It offers various measurement parameters (RMS, peak, peak-to-peak, crest factor) and automatic evaluation according to ISO 10816-3. The device includes a data logger function, allowing for manual and automatic saving of measured values for later analysis via PC software.

Key Features:

• Mobile vibration measurement
• Data logger function
• Automatic ISO 10816-3 evaluation
• Wide measuring range
• Rechargeable battery (up to 20 hours runtime)
• 2.8" LC display
• Micro-USB interface

Specifications:

• Vibration Displacement: Up to 3.9 mm
• Vibration Velocity: Up to 399.9 mm/s
• Vibration Acceleration: Up to 399.9 m/s² / 15744 in/s²
• Measurement Parameters: RMS, peak, peak-to-peak, crest factor
• Battery: Rechargeable LiPo (2500 mAh)

Applications:

• Vibration measurement on machines and plants
• Predictive maintenance
• Repair and maintenance work

Kit Contents:

• 1 x Accelerometer PCE-VT 3850
• 1 x Sensor
• 1 x Spiral cable
• 1 x Magnetic adapter
• 1 x Micro USB cable
• 1 x USB stick with software and instructions
• 1 x Quick start guide
• 1 x Case
• 1 x Headset

Performance and Characteristics:

• Accurate and reliable measurements
• Easy to use and portable
• Comprehensive data logging and analysis capabilities
• Long battery life

Enhance your vibration monitoring with the PCE Instruments PCE-VT 3850 Accelerometer. Gain valuable insights into equipment health and optimize maintenance strategies.
