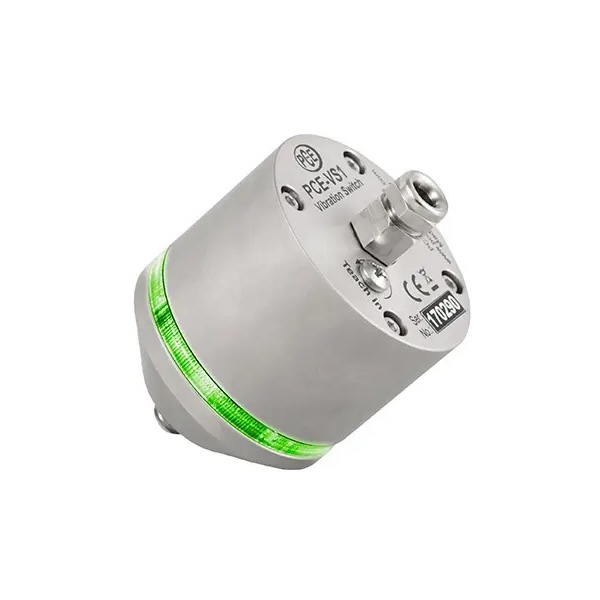

PCE Instruments PCE-VS10 Vibration Sensor Switch
- Part #:PCE-VS10
- Condition:Brand New
- List Price: $404.00
- $342.84 / EachYou Save: 15.14%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $404.00
- $342.84 / EachYou Save: 15.14%
- Free Shipping
PCE-VS10 Vibration Sensor Switch. Setup via USB and PC / Includes software for detailed vibration analysis
PCE-VS10 is a vibration meter, analyzer or sensor condition monitoring switch used to measure RMS and peak value of vibration velocity or acceleration piezoelectrically. This IP67-rated vibration monitoring switch features a red and green visual warning or alarm with programmable high pass and low pass filters.
Features:
- Ideal for machine condition monitoring and quality control applications
- Measures RMS and peak value of vibration velocity or acceleration
- Piezoelectric accelerometer
- IP67 ingress protection rating against water and dust
- Features a red and green visual warning or alarm
- Programmable high pass and low pass filters
- Emergency shut-off
- Setup via USB and PC
- Includes software for detailed vibration analysis
Includes:
- 1 x PCE-VS10 vibration sensor switch
- 1 x USB cable
- 1 x PC-compatible software
- 1 x user manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Measuring range | 0.1 ... 1000 m/s² acceleration Frequency dependent velocity |
| Monitoring values | Peak value of vibration acceleration or vibration velocity RMS value of vibration acceleration or vibration velocity |
| High pass filter | 0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration 2 / 5 / 10 / 20 / 50 Hz velocity |
| Low pass filter | 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration 1 kHz velocity |
| Relay output | PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via screw terminals |
| Teach-in function Warning / alarm Alarm delay / hold time | Button for measuring the switching threshold Green and red LEDs 0 ... 99 s / 0 ... 9 s |
| Interfaces | USB 2.0 full speed for parameterization and measurement CDC mode / virtual COM port Micro USB port inside |
| External USB port Power supply voltage | No 5 ... 30 V DC 5 V DC USB < 100 mA screw terminals |
| Ingress protection | IP67 rating |
| Operating temp. range | -40 ... +80 °C / -40 ... +176 °F |
| Approx. weight | 160 g / 0.36 lb |
| Approx. dimensions | 50 mm / 1.97" Ø 52 mm / 2.05" height |
| Mounting | M8 thread pin 8 mm / ≈ 0.32" length 25 mm / ≈ 0.99" Ø coupling surface |
