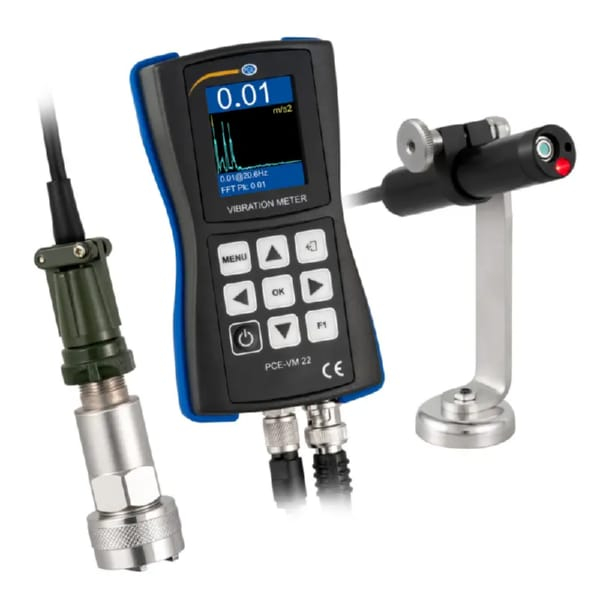

PCE Instruments PCE-VM 22 Accelerometer with 4 GB Data Memory

Overview

The PCE Instruments PCE-VM 22 is a comprehensive and portable vibration analysis solution, integrating accelerometer functionality with advanced features like FFT analysis, waveform display, infrared temperature measurement, and substantial 4 GB data storage. This versatile device empowers technicians, engineers, and maintenance professionals to effectively monitor and diagnose the health of industrial machinery and equipment.

Traditional vibration analysis often requires multiple specialized tools and complex procedures. The PCE-VM 22 streamlines this process by combining essential measurement capabilities into a single, user-friendly unit. It enables proactive identification of potential mechanical failures, allowing for timely intervention and preventing costly breakdowns and production interruptions.

Key benefits include its ability to measure a wide range of vibration parameters (acceleration, speed, displacement, frequency) and evaluate according to ISO 18016-3, its detailed FFT analysis and waveform display for in-depth fault diagnosis, and its integrated infrared temperature measurement for a holistic view of equipment condition. The contactless optical speed measurement further expands its application scope, particularly for rotating machinery like ventilation systems. With 4 GB of internal memory and an 8-hour battery life, it offers extended operation and data logging capabilities for comprehensive analysis.

The included magnetic holder ensures secure and convenient sensor attachment, even on curved surfaces, while the free PC software facilitates seamless data transfer, detailed analysis, and reporting, making the PCE-VM 22 an indispensable tool for proactive maintenance, quality control, and industrial troubleshooting.

Key Features

• Comprehensive Vibration Analysis: Measures acceleration (0-200 m/s²), speed, displacement, frequency, and evaluates according to ISO 18016-3 standards for thorough machine condition assessment.
• Real-time FFT Analysis and Waveform Display: Provides detailed frequency spectrums and vibration patterns on the device screen, enabling precise identification of mechanical faults such as imbalance and bearing issues.
• Integrated Infrared Temperature Measurement (-70 to 380°C): Allows for non-contact temperature monitoring of machine surfaces, providing critical insights into potential overheating and related mechanical problems.
• Contactless Optical Speed Measurement: Enables safe and accurate measurement of rotational speeds, essential for analyzing the performance of fans, motors, and other rotating equipment.
• Ample 4 GB Data Storage and Long Battery Life (up to 8 hours): Facilitates extended data logging and on-site analysis without frequent charging or data transfer interruptions.

Specifications

• Measuring Range (Acceleration): 0-200 m/s²
• Frequency Range: 1-10,000 Hz
• Temperature Range (Infrared): -70 to 380°C (-94 to 716°F)
• Data Storage: 4 GB
• Battery Life: Up to 8 hours
• Interface: Micro USB
• Vibration Sensor Attachment: Magnetic holder (minimum radius 20 mm / 0.78")
• Evaluation Standard: ISO 18016-3

Applications

This versatile accelerometer is ideally suited for maintenance and troubleshooting across various industrial sectors, enabling professionals to pinpoint and diagnose vibration-related issues in rotating machinery, pumps, compressors, and structural components. It is critical for industrial applications involving the condition monitoring of bearings, motors, generators, and gearboxes, facilitating proactive maintenance and preventing unexpected failures.

Furthermore, the PCE-VM 22 is valuable for quality control processes, ensuring the proper functioning and performance of newly installed or repaired equipment by verifying vibration levels are within acceptable limits. Its comprehensive measurement capabilities make it an essential tool for reliability engineers, maintenance technicians, and plant managers seeking to optimize equipment lifespan and minimize operational disruptions.

Performance and Characteristics

The PCE-VM 22 delivers accurate and reliable vibration measurements across a wide frequency range (1-10,000 Hz) and acceleration range (0-200 m/s²). Its integrated FFT analysis provides detailed frequency spectra, crucial for identifying specific fault frequencies associated with various mechanical issues. The addition of infrared temperature measurement offers a valuable complementary diagnostic capability, allowing users to correlate vibration patterns with thermal anomalies.

The device's 4 GB data storage capacity enables extensive data logging for trend analysis and historical comparison, supporting informed maintenance decisions. The long battery life ensures uninterrupted operation during extended monitoring sessions. The magnetic holder facilitates quick and secure attachment to machinery, enhancing user convenience and measurement repeatability. Data transfer via Micro USB and the included free PC software enable comprehensive data analysis and reporting.

Additional Information

The PCE Instruments PCE-VM 22 is manufactured with high-quality components, ensuring durability and reliable performance in demanding industrial environments. Its integrated features, including FFT analysis, waveform display, and ISO 18016-3 evaluation, provide a comprehensive solution for professional vibration analysis. The inclusion of infrared temperature and optical speed measurement further enhances its diagnostic capabilities, offering a holistic view of machine health. The user-friendly interface and robust design make it an indispensable tool for proactive maintenance strategies and efficient troubleshooting.

Kit Contents

• 1 x PCE-VM 22 accelerometer
• 1 x Vibration sensor with connection cable and magnetic holder
• 1 x Infrared sensor with speed sensor
• 1 x Magnetic holder
• 1 x USB charging adapter
• 1 x Micro USB cable
• 1 x Transport case
• 1 x Instruction manual

Enhance your machinery diagnostics with comprehensive vibration analysis and temperature monitoring. Invest in the PCE Instruments PCE-VM 22 Accelerometer today!
