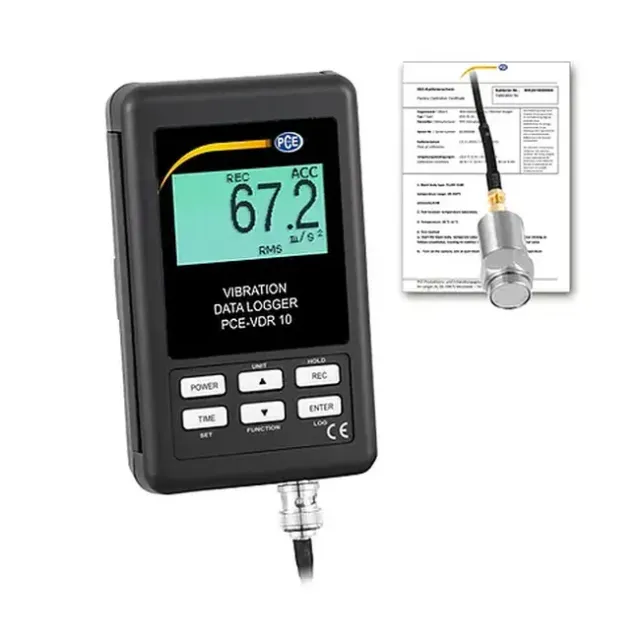

PCE Instruments PCE-VDR 10-ICA Vibration Analyzer, 10 to 1000 Hz incl. ISO Calibration Certificate

PCE-VDR 10 is a single-axis accelerometer or vibration analyzer with real-time measurement and data logging capabilities. This vibration monitor records acceleration (m/s, g, ft/s) as well as speed (mm/s, cm/s, in/s) measurements and saves the measured data to an included SD card memory. Note: To set up the SD card for the first time, the PCE-VDR 10 must be connected to AC power.

Note: To set up the SD card for the first time, the PCE-VDR 10 must be connected to AC power (AC power supply NET-LUT or NET-LUT-US sold separately - see accessories tab).

Features:

• Measures acceleration (m/s, g, ft/s) and speed (mm/s, cm/s, in/s)
• Adjustable automatic data logging
• SD card memory
• RS-232 and USB interface
• Data can be downloaded to a computer and analyzed using Microsoft Excel
• Backlit LCD screen
• Portable

Includes:

• 1 x Vibration Analyzer PCE-VDR 10
• 1 x vibration sensor
• 1 x wall bracket
• 6 x 1.5 V AAA batteries
• 1 x SD memory card
• 1 x connector for 4 ... 20 mA output
• 1 x User manual
• 1 x ISO Calibration Certificate
