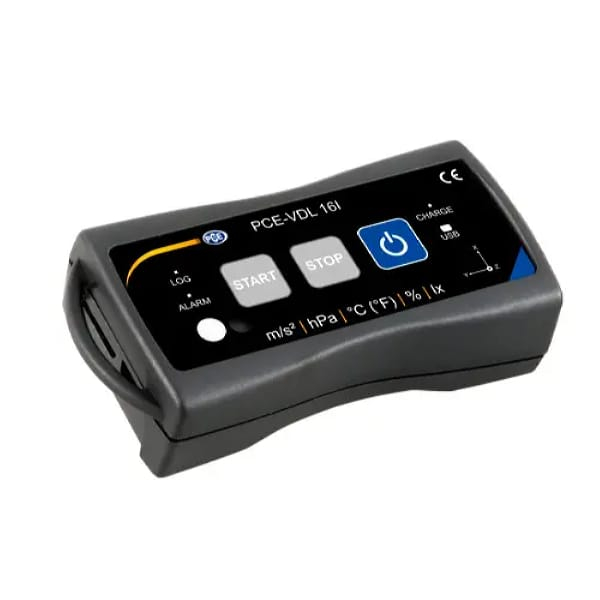

PCE Instruments PCE-VDL 16I Accelerometer with Up to 800 Hz

Overview

The PCE Instruments PCE-VDL 16I Accelerometer is a compact and versatile data logger equipped with multiple internal sensors for comprehensive environmental and motion monitoring. This device simultaneously measures 3-axis acceleration (at a high sampling rate of up to 800 Hz), temperature, humidity, air pressure, and light intensity (each sampled at a maximum of 1 Hz). This multi-parameter logging capability makes the PCE-VDL 16I ideally suited for a wide range of applications, including fault diagnosis, stress testing, machine inspection, shock measurements, and preventive maintenance, providing a holistic view of operational and environmental conditions.

Traditional monitoring in industrial and research settings often requires multiple independent sensors and data loggers, leading to complex setups and potentially unsynchronized data. The PCE-VDL 16I streamlines this process by integrating five key measurement parameters into a single, compact unit. The high sampling rate for acceleration allows for detailed analysis of dynamic forces and vibrations, while the synchronized environmental data provides valuable context for understanding the factors influencing equipment performance and structural integrity. Its small form factor and internal memory make it easily deployable in various locations for extended monitoring periods.

Key benefits include its high-frequency 3-axis acceleration measurement (up to 800 Hz) for detailed vibration and shock analysis, its integrated sensors for temperature, humidity, air pressure, and light intensity providing comprehensive environmental data, its large 32 GB SD memory card for extensive data logging, and its compact design for easy installation in space-constrained environments. Being manufactured in Germany ensures high quality and reliability. The included PC software facilitates easy data download, visualization, and analysis.

Supplied with a USB data cable, a 32 GB SD memory card, an SD card ejector tool, and a USB pen drive containing PC software and the user manual, the PCE-VDL 16I offers a complete and ready-to-use solution for multi-parameter data acquisition in a variety of professional applications.

Key Features

• High-Frequency 3-Axis Acceleration Measurement (up to 800 Hz): Enables detailed analysis of vibrations and shocks in three spatial dimensions, crucial for fault diagnosis and stress testing.
• Integrated Environmental Sensors: Simultaneously measures temperature, humidity, air pressure, and light intensity, providing comprehensive contextual data alongside motion analysis.
• Large 32 GB SD Memory Card: Allows for extensive data logging of all measured parameters over extended periods without frequent data offloading.
• Compact and Lightweight Design: With dimensions of 86.8 x 44.1 x 22.2 mm, the logger is easily deployable in tight spaces and minimally impacts the monitored environment.
• Made in Germany: Ensures high-quality manufacturing and reliable performance for demanding professional applications.

Specifications

• Acceleration Measurement: 3-axis
• Acceleration Sampling Rate: Up to 800 Hz
• Temperature Measurement: Integrated sensor (range and accuracy not detailed)
• Humidity Measurement: Integrated sensor (range and accuracy not detailed)
• Air Pressure Measurement: Integrated sensor (range and accuracy not detailed)
• Light Measurement: Integrated sensor (range and units not detailed)
• Environmental Sensor Sampling Rate: Max. 1 Hz
• Memory: 32 GB SD memory card
• Interface: USB (for data transfer and configuration)
• Dimensions: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in
• Power Supply: Internal (details not specified)

Applications

The PCE-VDL 16I Accelerometer is ideally suited for fault diagnosis in machinery and equipment, providing detailed vibration data alongside environmental factors that may contribute to malfunctions. It is essential for stress testing of components and structures, capturing both dynamic loads and environmental conditions. In machine inspection, it offers a comprehensive overview of operational vibrations and ambient parameters. For shock measurements during transportation or impact events, the high-frequency acceleration data is critical. Additionally, it plays a vital role in preventive maintenance by logging long-term vibration and environmental trends to identify potential issues before they escalate. Its versatility makes it applicable across various industries, including manufacturing, logistics, research, and structural engineering.

Performance and Characteristics

The PCE-VDL 16I offers synchronized multi-parameter data logging, providing a holistic understanding of dynamic and environmental conditions. Its high acceleration sampling rate allows for detailed analysis of vibration waveforms and shock events, while the integrated temperature, humidity, air pressure, and light sensors provide valuable contextual information. The large 32 GB SD memory card ensures extended data logging capabilities without frequent data retrieval. The compact and lightweight design facilitates easy deployment in various monitoring scenarios. The included PC software enables straightforward data download, visualization, and analysis, allowing professionals to effectively interpret the collected data and derive meaningful insights. The robust German manufacturing ensures the reliability and accuracy of the measurements.

Additional Information

The PCE Instruments PCE-VDL 16I Accelerometer is a sophisticated yet user-friendly data logger that integrates motion and environmental sensing into a single compact device. Its ability to capture high-frequency acceleration data alongside key environmental parameters makes it a powerful tool for a wide range of diagnostic and monitoring applications. The large memory capacity and included PC software enhance its practicality for both short-term investigations and long-term trend analysis. The German engineering and manufacturing underscore its quality and reliability, making it a valuable asset for professionals requiring comprehensive and synchronized environmental and motion data.

Includes

• 1x Accelerometer PCE-VDL 16I
• 1x Data cable USB - USB Micro
• 1x 32 GB SD memory card
• 1x SD card ejector tool
• 1x USB pen drive with PC software and user manual

Gain comprehensive insights into your equipment and environment with simultaneous vibration and environmental data logging. Invest in the PCE Instruments PCE-VDL 16I Accelerometer today!
