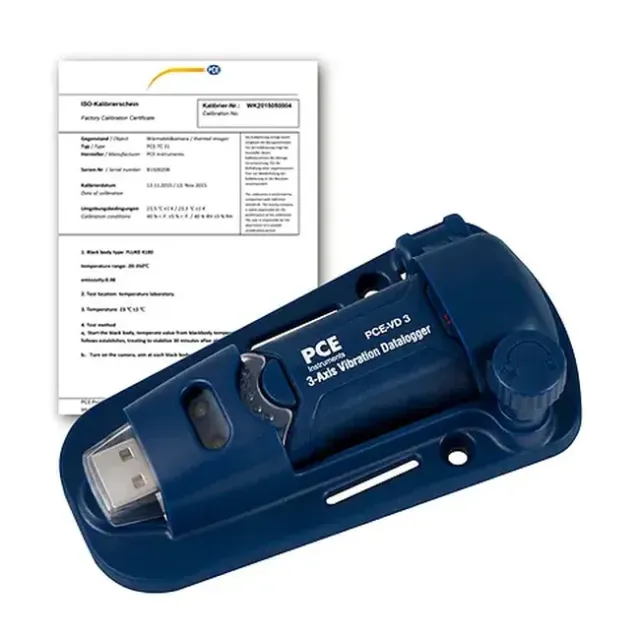

PCE Instruments PCE-VD 3-ICA Vibration Meter with FFT Analysis incl. ISO Calibration Certificate

Overview

The PCE Instruments PCE-VD 3 Vibration Meter is a compact and versatile miniaturized accelerometer featuring a built-in three-axis acceleration sensor (X, Y, Z). This device accurately measures acceleration force along each axis within a range of ±16 g. Its primary function is to record motion and alterations across these three axes as it moves, making it ideal for applications such as shipment control, sports performance analysis, medical research, and any scenario requiring the logging of movements across one to three axes. The PCE-VD 3 stands out with its included FFT (Fast Fourier Transform) analysis capabilities, allowing for detailed frequency analysis of the measured vibrations within a range of 0 to 60 Hz. Its robust design and magnetic bracket enable flexible placement, while its small size and lightweight construction ensure suitability for diverse applications. Programming is straightforward via the included software, and data transfer to a PC or laptop is quick and easy via the USB port.

Traditional motion logging often lacks the detailed frequency information needed for in-depth analysis. The PCE-VD 3 addresses this by incorporating FFT analysis, enabling users to examine the frequency components of the recorded accelerations, providing valuable insights into the nature of the motion or vibration. Its three-axis measurement capability offers a comprehensive understanding of movement in space. The magnetic wall bracket allows for secure and convenient mounting in various orientations. The included software simplifies device programming, data download, and analysis, making it accessible for a wide range of users. Its small size and lightweight design ensure minimal impact on the monitored object or system.

Key benefits include its integrated three-axis acceleration measurement (±16 g per axis), its FFT analysis capability for frequency-based vibration assessment (0 to 60 Hz), its included user-friendly software for programming and data analysis, its convenient USB port for easy data transfer, its lightweight and compact design for versatile application, its robust magnetic wall mount for secure placement, and its substantial storage capacity for recording a significant amount of data. Please note that initial programming via a PC is required before the device can operate.

Supplied with the PCE-VD 3 Accelerometer, a wall bracket, a battery, analysis software, two mounting screws, and a comprehensive instruction manual, this device offers a complete solution for tri-axial acceleration measurement and analysis in various professional and research contexts.

Key Features

• Three-Axis Acceleration Measurement (±16 g): Accurately measures acceleration forces along the X, Y, and Z axes, providing a comprehensive understanding of motion.
• Integrated FFT Analysis (0 to 60 Hz): Enables detailed frequency analysis of the recorded vibrations, offering insights into the underlying components of the motion.
• Included Software: Provides a user-friendly interface for programming the device, downloading recorded data, and performing further analysis.
• Convenient USB Port: Allows for quick and easy data transfer to a PC or laptop for analysis and archiving.
• Compact and Lightweight Design: Ensures minimal impact on the monitored object and facilitates versatile deployment in various applications.

Specifications

• Acceleration Sensor: Built-in three-axis (X, Y, Z)
• Measurement Range: ±16 g per axis
• Frequency Range (FFT Analysis): 0 to 60 Hz
• Sampling Rate (Acceleration): Not explicitly specified
• Sampling Rate (Other): N/A
• Memory Capacity: 8 Mbit (168042 records)
• Interface: USB
• Mounting: Magnetic wall bracket
• Software: Included for programming and data analysis
• Power Supply: 1 x Battery (type not specified)

Applications

The PCE-VD 3 Vibration Meter with FFT Analysis is ideally suited for fault diagnosis by analyzing the frequency components of vibrations in machinery and equipment. It is valuable for stress testing to monitor dynamic loads and their frequency distribution on components. In machine inspection, it provides detailed motion data for assessing operational performance. For shock measurements during transportation or impact events, the tri-axial acceleration and frequency analysis capabilities are crucial. It also finds applications in sports performance analysis to quantify movements and accelerations, in medical research for studying human motion, and in shipment control to monitor and record forces experienced during transit. Its versatility makes it suitable for any application requiring the detailed recording and analysis of 1 to 3-axis movements.

Performance and Characteristics

The PCE-VD 3 Vibration Meter delivers accurate three-axis acceleration measurements, providing a comprehensive understanding of motion dynamics. Its integrated FFT analysis capability allows for the examination of the frequency spectrum of the recorded vibrations within the 0 to 60 Hz range, enabling the identification of specific frequency components related to different aspects of the motion or potential faults. The included software simplifies the initial programming of the device and provides tools for efficient data download and further analysis on a PC. The USB interface ensures quick and reliable data transfer. The compact and lightweight design facilitates easy mounting on various objects or systems, and the magnetic wall bracket offers a secure and convenient attachment option. The substantial internal memory allows for the recording of a significant amount of data, making it suitable for both short-term and longer-duration monitoring tasks.

Additional Information

The PCE Instruments PCE-VD 3 Vibration Meter with FFT Analysis is a powerful yet user-friendly tool for tri-axial acceleration measurement and frequency-based vibration analysis. Its integrated FFT capability distinguishes it from simple acceleration loggers, providing valuable insights into the frequency content of the measured motion. The included software enhances its functionality by providing a platform for easy programming and detailed data analysis. The compact size and magnetic mount contribute to its versatility across a wide range of applications. It is important to note that the device requires initial programming via a PC before it can be used for data logging. This accelerometer offers a comprehensive solution for professionals and researchers needing detailed motion analysis, including frequency information.

Includes

• 1 x PCE-VD 3 Accelerometer
• 1 x Wall bracket
• 1 x Battery
• 1 x Software
• 2 x Screws
• 1 x Instructions
• 1 x ISO Calibration Certificate

Gain detailed insights into motion and vibration with tri-axial acceleration measurement and FFT analysis. Program and deploy the PCE Instruments PCE-VD 3 Vibration Meter today!
