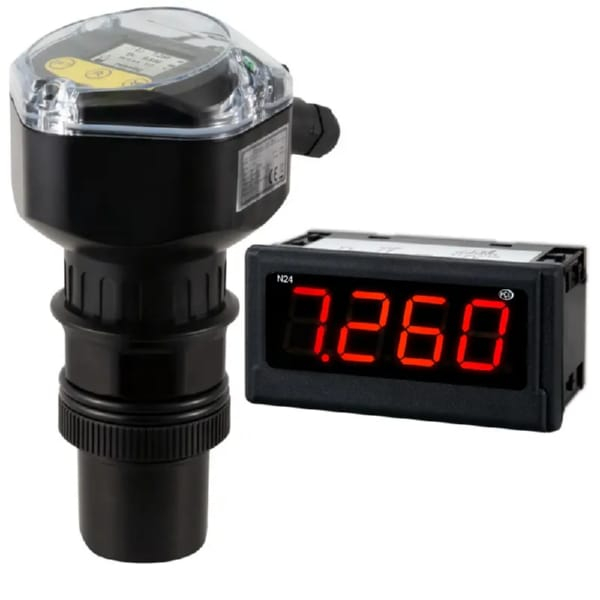

PCE Instruments PCE-ULM-10-N24S Level Indicator with 4-20 mA Output Signal and External Digital Display

Overview

The PCE Instruments PCE-ULM-10-N24S Level Indicator is a robust and versatile measuring device designed for accurate silo level monitoring and seamless integration into industrial process control systems. Featuring a 4-20 mA output signal, this level indicator allows for easy connection to operational control systems, enabling further processing of measurement data. With a measuring depth of 10 meters (32.8 ft), it can effectively monitor the fill levels of larger silos. The included external digital display (PCE-N24S) provides clear and immediate level readings, while the indicator's high IP protection class safeguards electrical components against potential water ingress. This level indicator offers a significant advantage for professionals requiring reliable and precise silo level management, replacing manual checks and improving inventory control. It can display both fill level and distance to the medium, and also measures ambient temperature.

Key Features

• 4-20 mA Output Signal: Enables seamless connection to process control systems for data acquisition and automated control.
• External Digital Display (PCE-N24S): Provides a clear and easy-to-read 4-digit LED display for immediate level information.
• 10 Meter (32.8 ft) Measuring Depth: Allows for monitoring of fill levels in larger silos and tanks.
• Two-Wire Connection Technology: Simplifies installation and wiring.
• Ambient Temperature Display: Offers additional environmental monitoring capability.
• Configurable via Software: Allows for customization of settings using the freely available LPCon software.

Specifications

Product Name: PCE Instruments PCE-ULM-10-N24S Level Indicator with 4-20 mA Output Signal and External Digital Display

Measuring Range: 10 meters / 32.8 ft

Output Signal: 4-20 mA

Connection Technology: Two-wire

Display: External Digital Display PCE-N24S (4-digit LED)

Display Protection Class: IP66 (front of display)

Display Input Signals: 4 ... 20 mA, 0 ... 10 V 0 ... 60 mV (selectable)

Display Connection: Screw terminal

Sensor Supply: Optional 24 V (for 2-wire sensors)

Configuration: Via software (LPCon)

Connection Thread: Stable M60

Ambient Temperature Display: Yes

Main Unit Protection Class: (Specify if available)

Applications

Essential for inventory management in grain silos, ensuring accurate monitoring of stored material levels. Ideal for monitoring chemical levels in storage tanks, providing critical data for process control. Used in construction materials storage (cement, sand) for efficient stock management. Applicable in wastewater treatment plants for monitoring sludge or liquid levels in tanks. Valuable for monitoring feed levels in agricultural silos, optimizing feeding schedules. Utilized in any industrial setting requiring precise and continuous level measurement in silos or tanks up to 10 meters deep.

Performance and Characteristics

The level indicator provides reliable level measurement up to 10 meters (32.8 ft). The 4-20 mA output signal offers robust and noise-resistant transmission of measurement data. The included external digital display (PCE-N24S) allows for easy on-site monitoring of current levels. The ability to configure the indicator via software provides flexibility to adapt to specific application requirements. The high IP protection class of the display ensures durability in industrial environments. The optional 24 V sensor supply simplifies the connection of compatible 2-wire sensors or transmitters.

Additional Information

The level indicator uses a stable M60 connection thread for secure mounting. The configuration software (LPCon) allows for saving and recalling configurations, streamlining setup and maintenance. The PD14 programming adapter (available separately) is required for communication between the PC and the level indicator. The external digital display is delivered without scaling of the measurement signal, allowing users to configure it according to their needs.

Kit Contents

This product includes:

• 1 x Level indicator PCE-ULM-10-N24S
• 1 x Built-in display PCE-N24S
• 4 x Mounting hardware
• 1 x Gasket
• 1 x Instruction Manual

Ensure accurate and reliable silo level monitoring with seamless integration into your process control system. Invest in the PCE Instruments PCE-ULM-10-N24S Level Indicator today!
