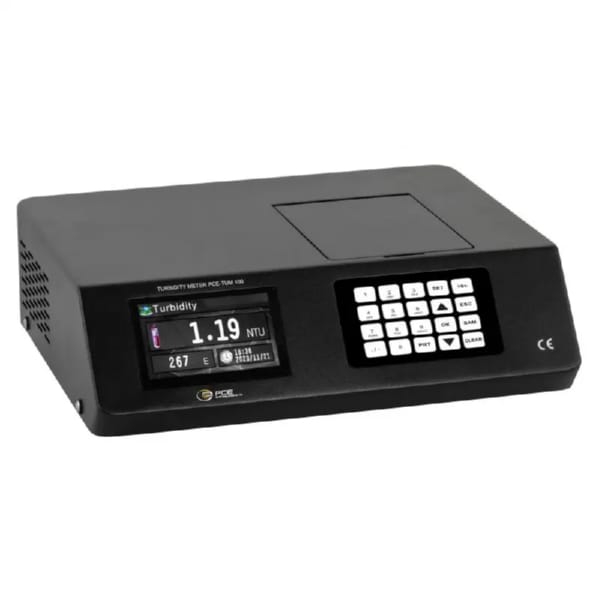

PCE Instruments PCE-TUM 100 Photometer, Colour Display, Measuring Range up to 500 NTU
- Part #:PCE-TUM 100
- Condition:Brand New






Photometer, color display, measuring range up to 500 NTU, scattered light measuring method 90°, mains operation, USB and printer interface
The precision of the photometer ensures accurate measurements in all relevant applications. With five factory-saved calibration points, the photometer offers a ready-to-use solution for different environments. In addition, the photometer offers the option of customised opacity calibration. With up to five calibration points, the photometer can be flexibly adapted to specific requirements and measurement conditions.
The photometerr's color display presents the measurement results in a clear and easy-to-understand manner. This user-friendly interface simplifies operation considerably and also enables new users to utilise the photometer quickly and efficiently. The internal memory allows measurement data to be saved for later analysis or reporting.
For seamless data management, the photometer is equipped with a USB interface for external data carriers. This makes it easy to save measurement results from the photometer to a USB stick. In addition, the RS232 printer interface on the photometer offers the option of printing measurement logs directly to ensure quick documentation of the results.
Overall, the photometer impresses with its precise measurements, simple operation and wide range of data storage and transfer options. It is the ideal solution for anyone who places the highest demands on turbidity measurements.
Features:
- Precise measurement
- 5 stored calibration points
- Individual 5-point turbidity calibration possible
- Color display
- Simple operation
- Internal memory
- USB-A interface for data carriers
- RS232 printer interface
Includes:
- 1 x Photometer PCE-TUM 100
- 2 x cuvette
- 1 x power cable
- 1 x USB stick
- 1 x operating manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Turbidity | |
| Measurement range | 0 NTU ... +500 NTU |
| Resolution | 0.01 |
| Accuracy | ±5 % FS |
| General technical data | |
| Display type | LED |
| Display size | 4.2 inches |
| Interface | RS232, USB A |
| Light source | LED at 850 nm |
| Number of calibration points | 5 |
| Measurement method | 90 ° |
| Menu language | English |
| Protection class (device) | IP20 |
| Power supply | 110-220V, 50-60Hz |
| Plug type | Cold plug |
| Weight | 3.68 kg |
| Dimensions (L x W x H) | 37 cm x 31 cm x 11.5 cm mm |
| Other dimensions | Cuvette Ø x height 25 x 65 mm |
| Operating conditions | 16 ... 35 °C , 45 ... 80 % RH |
| Storage conditions | 16 ... 35 °C , 45 ... 80 % r.H |
| Instruction languages | English |
