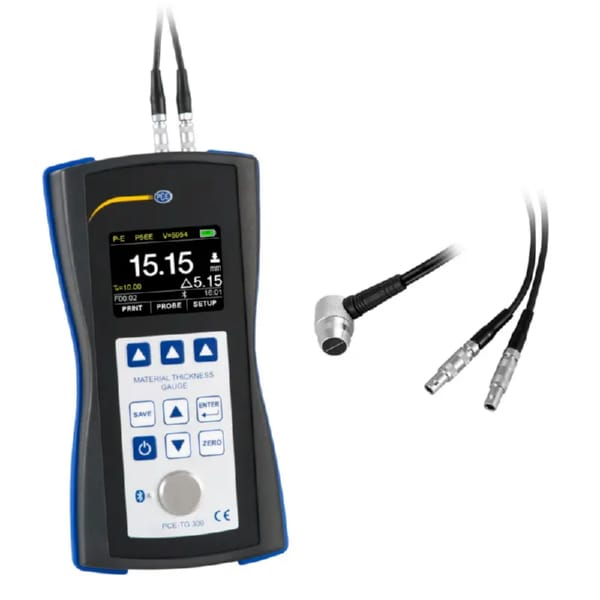

PCE Instruments PCE-TG 300-P5EE Condition Monitoring Device Up to 600 mm

Large measuring range / Up to 600 mm / Pulse-echo or echo-echo mode / For all homogeneous materials / Print function via Bluetooth / USB connection

The PCE-TG 300-P5EE is a condition monitoring device with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90° sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials.

The measured values are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured.

Features:

• Large measuring range
• Various sensors available
• Battery operation
• Error and voids detection
• Internal measurement data memory
• Print via Bluetooth

Includes:

• 1 x Condition monitoring device PCE-TG 300-P5EE
• 1 x Sensor PCE-TG-P5EE
• 1 x 100 ml coupling gel
• 1 x Transport case
• 4 x AA batteries
• 1 x User manual
