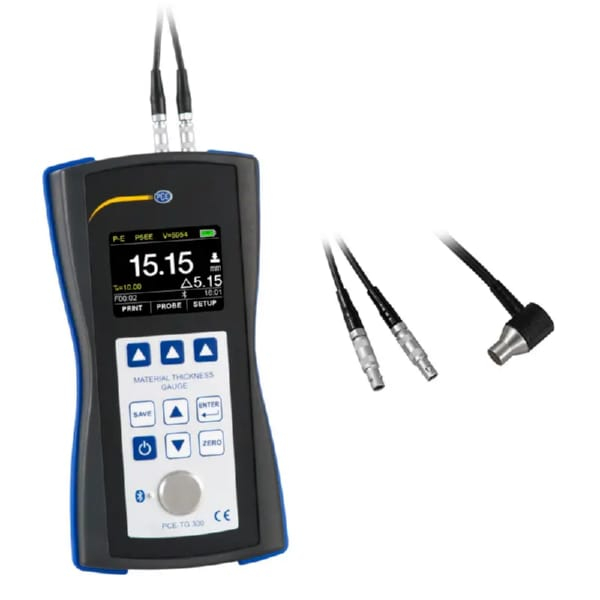

PCE Instruments PCE-TG 300-NO7 Condition Monitoring Device with Pulse-Echo or Echo-Echo Mode
- Part #:PCE-TG 300-NO7
- Condition:Brand New
- List Price: $1,392.00
- $1,322.00 / EachYou Save: 5.03%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
- Technical details
- Description
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| PCE-TG-NO7 sensor | |
| Measuring range | 0.65 ... 200 mm / 0.025 ... 7.87" (steel) |
| Minimum diameter of pipes | 15 x 2 mm / 0.59 x 0.07" |
| Frequency | 7 MHz |
| Diameter | 6 mm / 0.23" |
| Description | for thin-walled or strongly curved pipes |
| PCE-TG 300-NO7 device | |
| Measuring range | P-E: pulse-echo mode 0.65 ... 600 mm / 0.025 ... 23.62" (steel)" |
| (measurement range varies depending on the sensor) | |
| E-E: Echo-Echo mode 2.50 ... 100 mm / 0.098 ... 2.36" | |
| (only with PCE-TG 300-P5EE sensor) | |
| Accuracy | ±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm) |
| H refers to the material thickness of the workpiece | |
| Resolution | 0.1 mm / 0.01 mm / 0.001 mm (adjustable) |
| Measurable materials | metals |
| plastics | |
| ceramics | |
| epoxy resin | |
| glass | |
| and all homogeneous materials | |
| Working modes | Pulse-echo mode (fault and void detection) |
| Echo-echo mode (hide layer thicknesses, e.g. paint) | |
| Calibration | sound velocity calibration |
| zero calibration | |
| two-point calibration | |
| View Mode | Normal Mode, Scan Mode, Difference Mode |
| Units | mm / inch |
| Data transfer | printing via Bluetooth / USB 2.0 |
| Memory | non-volatile memory with 100 data groups with 100 data sets each |
| Operating time | continuous operation 100 h |
| automatic stand-by mode (adjustable) | |
| auto power off mode (adjustable) | |
| Power supply | 4 x AA battery 1.5 V |
| Display | 320 x 240 pixels TFT LCD color display with brightness adjustment |
| Operating conditions | 0 ... +50 °C / 32 ... 122 °F, ≤80 % RH non-condensing |
| Storage conditions | -20 ... +70 °C / -4 ... 158 °F, ≤80 % RH non-condensing |
| Dimensions | 185 x 97 x 40 mm / 7.2 x 3.8 x 1.5" |
| Weight | 375 g / 13.2 oz |
