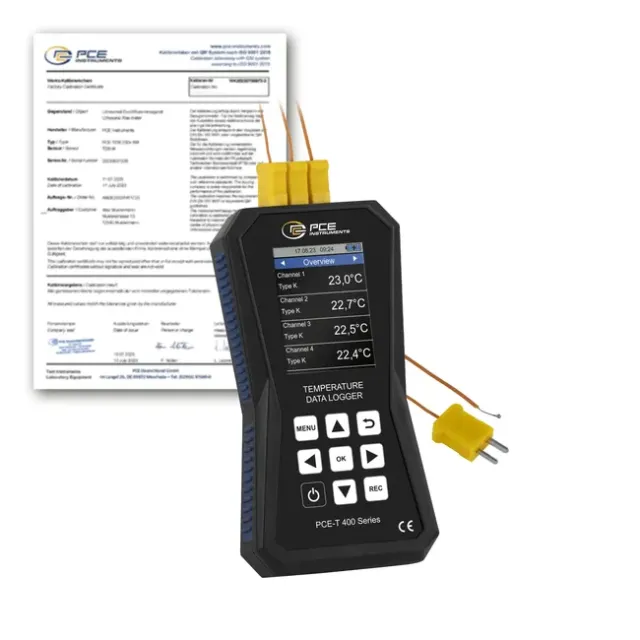

PCE Instruments PCE-T 420-ICA 4-Channel Contact Thermometer for Thermocouples incl. ISO Calibration Certificate
- Part #:PCE-T 420-ICA
- Condition:Brand New
- List Price: $633.00
- $588.10 / EachYou Save: 7.09%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $633.00
- $588.10 / EachYou Save: 7.09%
- Free Shipping
4-Channel contact thermometer for Thermocouples / 4 Channels for Various Thermocouples / Data Storage for 10 Million Readings / Alarm Thresholds / Various Display Options / Battery-Powered Handheld Device
The 4-channel contact thermometer for thermocouples allows for the display and archiving of multiple temperature sensors simultaneously. It can be connected to up to 8 different types of thermocouples. Notably, the data logger offers high accuracy, especially with Type K thermocouples, with an accuracy of Type K ± (0.04% of reading + 0.3 K).
The measurement overview of the 4-channel contact thermometer provides a quick overview of the 4 displayed temperatures. Another view displays the maximum, minimum, and average values since the start of measurement. Additionally, each channel can be compared with all other channels, showing the current measurement value of the channel and the difference from the reference channel. The 4-channel contact thermometer can store up to 100 data sets, each with a maximum of 100,000 readings. Adjustable alarm thresholds for upper and lower temperature values can highlight measurements in red. Using the included PC software, data stored by the 4-channel contact thermometer can be imported, graphically represented, analyzed, and archived.
The 4-channel contact thermometer for thermocouples is well-suited for areas where temperature monitoring is critical. Possible applications include furnace inspections, temperature-sensitive component development processes, or laboratory experiments.
Features:
- Measurement range from -200 to +1800 °C
- High accuracy of ± (0.04% of reading + 0.3 K) for Type K
- Compatibility with 8 thermocouple types
- Thermocouple types K, J, S, R, E, T, N, B
- Storage for 10 million measurement values
- Adjustable alarm limits
- 4 input channels
Includes:
- 1 x 4-Channel Contact Thermometer PCE-T 420
- 4 x K-Type Wire Probes (TF-500)
- 1 x USB-C Cable
- 1 x USB Stick with Manual and PC Software
- 1 x Device Case
- 1 x Quick Start Guide
- 1 x ISO Calibration Certificate
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Temperature Type K | |
| Measurement Range | -200°C ... +1370°C |
| Resolution | 0.1°C |
| Accuracy | ± (0.04% + 0.3°C) |
| Temperature Type J | |
| Measurement Range | -200°C ... +1050°C |
| Resolution | 0.1°C |
| Accuracy | ± (0.04% + 0.3°C) |
| Temperature Type S | |
| Measurement Range | 0°C ... +1750°C |
| Resolution | 0.1°C |
| Accuracy | ± (0.05% + 1°C) |
| Temperature Type R | |
| Measurement Range | 0°C ... +1750°C |
| Resolution | 0.1°C |
| Accuracy | ± (0.05% + 1°C) |
| Temperature Type E | |
| Measurement Range | -200°C ... +850°C |
| Resolution | 0.1°C |
| Accuracy | ± 0.6°C |
| Temperature Type T | |
| Measurement Range | -200°C ... +400°C |
| Resolution | 0.1°C |
| Accuracy | ± 0.6°C |
| Temperature Type N | |
| Measurement Range | -200°C ... +1300°C |
| Resolution | 0.1°C |
| Accuracy | ± 0.6°C |
| Temperature Type B | |
| Measurement Range | +600°C ... +1800°C |
| Resolution | 0.1°C |
| Accuracy | ± (0.05% + 1°C) |
| General Technical Data | |
| Inputs | 4 channels for Thermocouples |
| Display Type | LCD |
| Units | °C, °F, K |
| Display Size | 2.8 inches |
| Memory Capacity | 100 data sets up to 100,000 measurements per data set |
| Memory Interval | 1 ... 43,200 s |
| Data Interface | USB-C |
| Power Supply | USB 5V DC 500mA |
| Battery Capacity | 2,500 mAh |
| Battery Voltage | 3.7 V |
| Battery Type | Lithium-Ion Polymer Battery |
| Operating Duration | Approximately 15 ... 20 hours (depending on display brightness) |
| Thermocouple Length | Approximately 1 meter |
| Menu Language | English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese, Danish |
| Protection Class | IP52 |
| Operating Conditions | -20 ... 65°C, 10 ... 95% r.H. |
| Dimensions | 6.4 x 3.3 x 1.2 inch (L x W x H) |
| Weight | 255 g |
