Name: PCE Instruments PCE-T 238 Handheld Tachometer
Brand: PCE Instruments
SKU: ID44824
Price: 259.84000 USD
Availability: InStock

PCE Instruments PCE-T 238 Handheld Tachometer

List Price: $298.00
$259.84 / Each
You Save: 12.81%
Free Shipping

Typically In Stock

Check Availability

Quantity:

Description

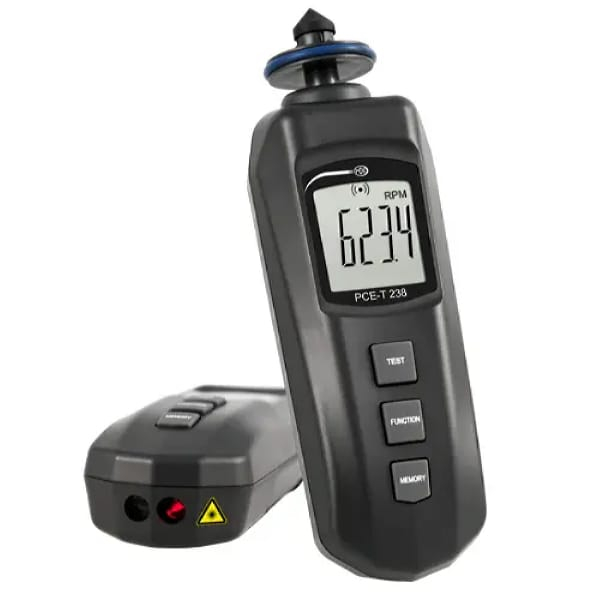

PCE Instruments PCE-T 238 Handheld Tachometer

The PCE-T 238 is a versatile handheld tachometer for measuring rotational speed and surface velocity. This battery-powered device offers both contact and non-contact measurement modes, making it suitable for a wide range of applications. It features an integrated laser for non-contact measurements and includes various contact probes for direct measurements.

Key Features:

Dual Measurement Modes: Contact and non-contact measurements using a laser or mechanical probes.
Surface Speed Measurement: Measures surface velocity in m/min using the contact wheel.
Wide Measurement Range: Measures up to 99,999 rpm in non-contact mode and 19,999 rpm in contact mode.
Direction Independent: Accurately measures speed regardless of rotation direction.
Easy to Use: Simple design with a clear display and easy-to-use controls.

Specifications:

Measurement Range (Optical): 5 to 99,999 rpm
Measurement Range (Contact): 0.5 to 19,999 rpm
Measurement Range (Surface): 0.05 to 1,999.9 m/min
Display: LCD
Power Supply: 4 x 1.5V AAA batteries

Applications:

Ideal for maintenance, repair, and inspection tasks in various industries, including:

Industrial Maintenance: Monitoring motor speeds, conveyor belts, and rotating machinery.
Automotive: Measuring engine RPM and wheel speed.
Laboratory and Research: Analyzing rotational speed in experiments.
HVAC: Measuring fan speeds and blower performance.

Kit Content:

1 x PCE-T 238 Tachometer
2 x Rubberized measuring tip (cone shape)
1 x Rubberized measuring tip (funnel shape)
1 x Reflective contact strip
4 x 1.5V AAA batteries
1 x User manual

Performance:

Provides accurate and reliable speed measurements in a user-friendly and portable design.

Characteristics:

Type: Digital Tachometer
Measurement Modes: Contact and Non-Contact

Experience the convenience and versatility of the PCE Instruments PCE-T 238 Handheld Tachometer. Upgrade your measurement tools today for improved efficiency and accuracy in your speed measurement tasks.

See more product information

⚠️ Attention CA Residents: Prop 65 Warning

You May Also Like
Your Recently Viewed
Reviews

Technical details

Measuring range contactless measurement	5 ... 99,999 RPM
Measuring range contact measurement	0.5 ... 19,999 RPM
Measuring range surface measurement	0.05 ... 1,999.9 m/min
Resolution RPM	At <1,000 rpm: 0.1 At ≥1,000 rpm: 1
Resolution m/min	At <100 m/min: 0.01 At ≥1000 m/min: 1
Display	LCD, size: 32 x 28 mm / 1.2 x 1.1 in, 5 digits
Measurement accuracy	± (0.1% of rdg. + 1 digit)
Measuring distance for non-contact measurements	Typically 5 ... 150 cm / 2 ... 59 in
Laser	Class II, power: 1 mW
Operating conditions	0 ... 50°C / 32 ... 122°F, <80 % relative humidity
Memory	Last value, extreme values with call function
Data interface	RS232
Power supply	4 x 1.5V AAA batteries
Power consumption	Contactless measurement: ca. DC 20-mA Contact measurement: ca. DC 9.5-mA
Dimensions	165 x 50 x 33 mm / 6.5 x 1.9 x 1.3 in
Weight	182 g / 6.4 oz (incl. batteries)
