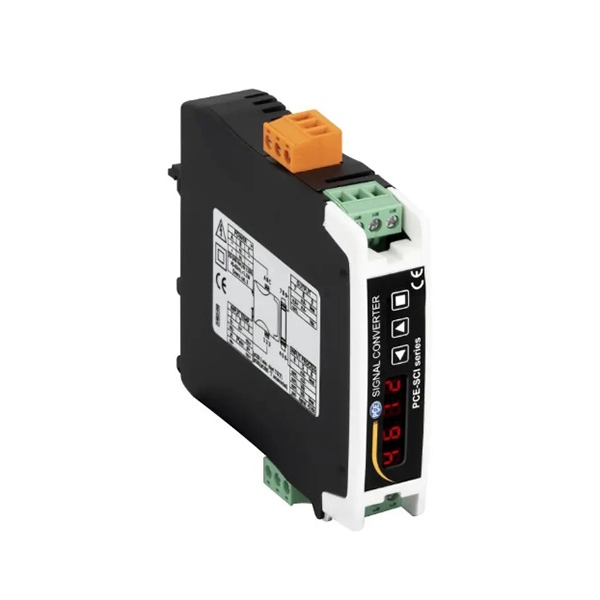

PCE Instruments PCE-SCI-P Universal Measuring Transducer for Various Input Signals

Universal measuring transducer for various input signals / information messages / password protection / power supply 18 ... 265 V AC/DC

Current Measuring Transducer for process signals, temperatures, resistors and potentiometers. Offers a wide range of configuration options for converting signals. The output signal can be selected between 4 ... 20 mA and 0 ... 10 VDC can be selected for the output signal.Configurable for measuring 4 ... 20 mA and 0 ... 10 VDC process signals, both active and passive. If required, the universal measuring transducer provides an excitation voltage to supply the transducer with current. Type J,K,N,E,T,R,S,C,B thermocouples can also be connected. Furthermore, thermoresistors Pt100 (2 and 3 wires), Pt500 and Pt1000, several NTC sensors, resistors and potentiometer signals.The universal measuring transducer has a universal power supply from 18 to 265 VAC/DC and 3-way insulation between input, output and current circuits.The input and output signal ranges are customisable via a keypad with front display. The Current Measuring Transducer has a "password" function to block unauthorised access to the configuration menu. It also has an "SOS" mode to assist with critical maintenance and repair work without interfering with the manufacturing process. Designed for industrial use, with potential integration into a wide range of applications.

Features:

• 31 input options
• Many configuration options
• Analogue outputs
• Display and keypad for configuration
• Top-hat rail mounting

Includes:

• 1 x Current Measuring Transducer PCE-SCI-P
• 1 x operating instructions
