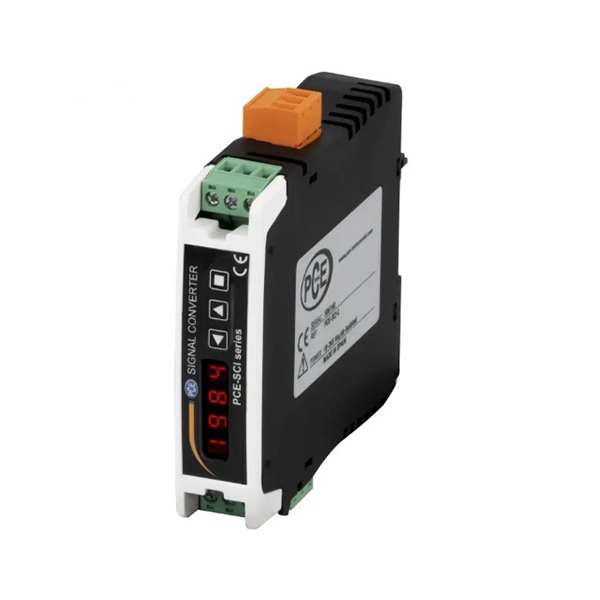

PCE Instruments PCE-SCI-L Current Measuring Transducer

Current Measuring Transducer / many input ranges / information messages / password protection / power supply 18 ... 265 V AC/DC

The current measuring transducer and millivolt signals offer a wide range of configuration options for converting signals. The output signal can be selected between 4 ... 20 mA and 0 ... 10 VDC can be selected. Configurable for measuring load cells in the range 0 ... 5 mV to 0 ... 80 mV, also with bipolar ranges from ±5 mV to ±80 mV. It also provides an excitation voltage of +5 VDC to supply the load cell. The current measuring transducer has a universal power supply from 18 to 265 VAC/DC and isolation between input, output and current circuits.The input and output signal ranges are customizable via a keypad with front display. The current measuring transducer has a "password" function to block unauthorized access to the configuration menu. It also has an "SOS" mode to assist with critical maintenance and repair work without interfering with the manufacturing process. Designed for industrial use, with potential integration into a wide range of applications.Configurable information messages (tare value, mV at terminals, input signal value, output signal value, configured label, signal percentage, process value, excitation voltage value and excitation current value). Manual "force" functions for generating low and high output signals to validate the remote instrumentation during installation.

Features:

• Various force and load cells convertible
• Many configuration options
• Analog outputs
• Display and keypad for configuration
• DIN rail mounting

Includes:

• 1 x current measuring transducer PCE-SCI-L
• 1 x operating instructions
