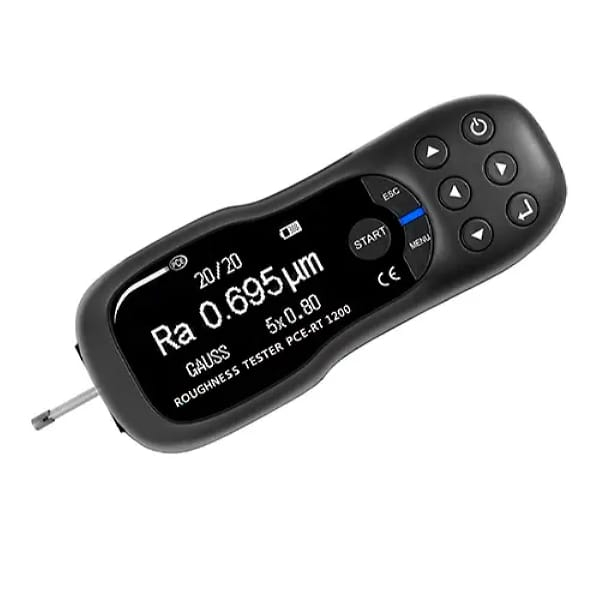

PCE Instruments PCE-RT 1200BT Paint Roughness Tester
- Part #:PCE-RT 1200BT
- Condition:Brand New
- List Price: $2,504.00
- $2,058.70 / EachYou Save: 17.78%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
- Technical details
- Specification Sheet
- Description
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| Measurement parameters | Ra, Rz, Rq, Rt |
| Measuring ranges | Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin |
| Radius probe tip | 5 µm/ 196.850 µin |
| Material probe tip | Diamond, 90° angled |
| Max. recommended force for static measurement | 4 mN (0.4 gf) |
| Radius longitudinal guide bar | 45 mm / 1.77" |
| Standards | ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287) |
| Maximum driving distance | 15 mm / 0.59" |
| Measuring principle | Inductive |
| Cut-off wavelength | 0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098" |
| Testing speed | 0.135 mm/s at cut-off wavelength: 0.25 mm 0.5 mm/s at cut-off wavelength: 0.8 mm 1 mm/s at cut-off wavelength: 2.5 mm Reversing speed: 1 mm/s |
| Measuring accuracy | < ± 10% |
| Repeatability | < 6% |
| Display | OLED |
| Units | μm / μinch (switchable) |
| Interface | Micro-USB, Bluetooth |
| Power supply | Rechargeable Li-ion battery |
| Dimensions L x W x H | 150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in |
| Weight | 370 g / < 1 lb |
Specification Sheet
