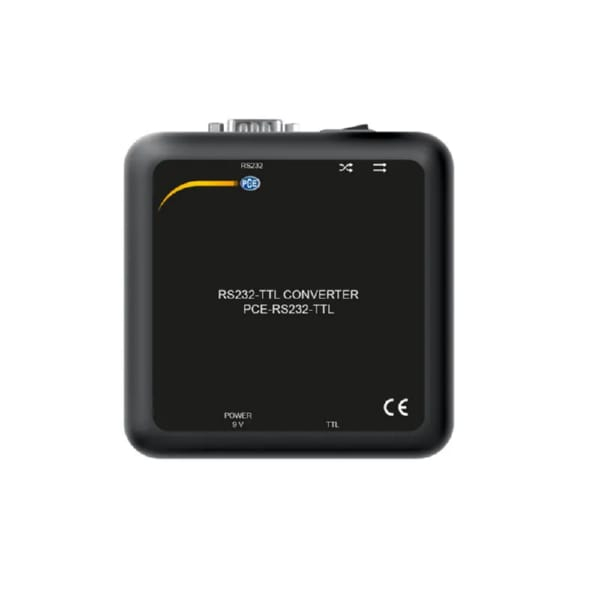

PCE Instruments PCE-RS232-TTL Interface Converter for Parallel and Crossed Connections
- Part #:PCE-RS232-TTL
- Condition:Brand New
- List Price: $247.00
- $218.51 / EachYou Save: 11.53%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $247.00
- $218.51 / EachYou Save: 11.53%
- Free Shipping
RS232 TTL interface converter for parallel and crossed connections / high baud rate / 20 mA current consumption / 9 V voltage supply via a power supply unit
The RS232 TTL interface converter is a device-independent solution for converting an RS232 signal into a TTL signal. The RS232 TTL interface converter can also be used to convert a TTL signal into an RS 232 signal. If, for example, the RS232 TTL interface converter is to be used to evaluate the data output of a scale, which communicates via RS232, with the help of a microprocessor, the RS232 TTL interface converter can now be interposed between the transmitter and receiver.
When converting the signals, the RS232 TTL interface converter enables a transmission speed of up to 115,200 baud. The baud rate itself does not have to be set for the RS232 TTL interface converter. This is set by the RS232 TTL interface converter itself. In addition to converting a parallel signal, the signal can be switched to a crossed signal via the RS232 TTL interface converter by setting the switch. Thus the RS232 TTL interface converter can be used universally and quickly.
Features:
- For parallel and crossed connections
- Transmission speed up to 115,200 baud
- Low power consumption
- Ready for use after applying the restoration
- 3.5 mm jack and SUB D 9 interface
- To adjust the signal level
Includes:
- 1 x RS232 TTL interface converter PCE-RS232-TTL
- 1 x 9 V power supply
- 1 x instruction manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Power supply | 9 V DC via power pack |
| Max. current consumption | 20 mA |
| Max. transmission speed | 115,200 baud |
| Interface RS232 | SUB D 9 (male) |
| Interface TTL | 3.5 mm jack, 3 pin |
| Ambient conditions | -10 … +60 °C, <90 % r.H. |
| not condensing | |
| Dimensions W x H x D | 100 x 35 x 100 mm / 3.9 x 1.3 x 3.9" |
| Weight | ca. 147 g / 5.1 oz |
