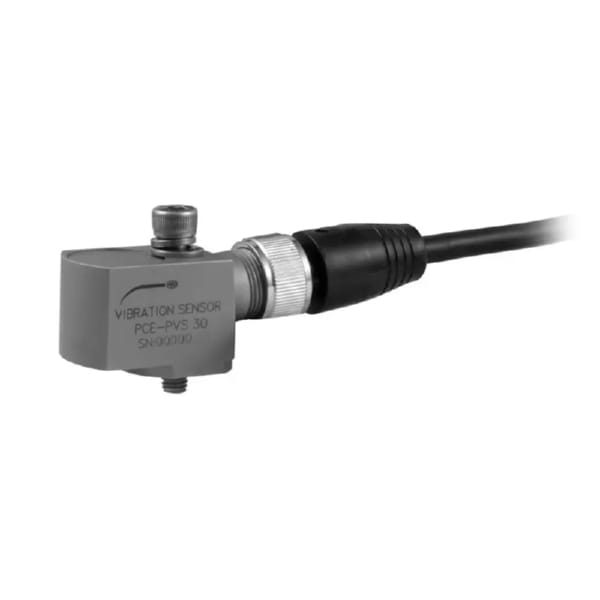

PCE Instruments PCE-PVS 30 Piezoelectric Vibration Sensor

Overview

The PCE Instruments PCE-PVS 30 is a robust piezoelectric acceleration sensor specifically designed for the continuous monitoring of vibration speed in industrial machinery. Available in various configurations distinguished by their design and measuring range, this sensor provides reliable and accurate vibration speed measurements, outputting a standard 4-20 mA process current for easy integration into control and monitoring systems. Its wide bandwidth and durable construction make it suitable for a diverse range of industrial applications requiring continuous vibration monitoring for predictive maintenance and early fault detection.

Traditional spot checks of vibration can miss critical trends and sudden changes in machine health. The PCE-PVS 30 addresses this by providing a continuous 4-20 mA output signal proportional to the measured vibration speed. This allows for real-time monitoring by PLCs, data loggers, and other industrial control equipment, enabling immediate identification of abnormal vibration levels and facilitating proactive maintenance interventions before costly failures occur.

Key benefits include its accurate measurement of vibration speed in the range of ±12.7 mm/s or ±25.4 mm/s (depending on the model), its broad frequency bandwidth of 3 Hz to 1500 Hz capturing a wide spectrum of vibration frequencies, its industry-standard 4-20 mA output for seamless integration with control systems, and its secure and reliable MIL-C-5015 connector ensuring robust connectivity in industrial environments. The availability of horizontal or vertical installation options provides mounting flexibility for various machinery configurations.

Supplied with a MIL-C 5015 plug to 5 m cable and a comprehensive instruction manual, the PCE-PVS 30 offers a dependable solution for continuous vibration speed monitoring, empowering maintenance and process control professionals to optimize machinery performance and minimize downtime.

Key Features

• Continuous Vibration Speed Monitoring: Specifically designed for the ongoing measurement of vibration speed, providing crucial data for predictive maintenance and machine health assessment.
• Standard 4-20 mA Output: Outputs a universally compatible analog current signal proportional to the measured vibration speed, facilitating easy integration with PLCs, data loggers, and industrial control systems.
• Wide Bandwidth (3 Hz to 1500 Hz): Detects a broad range of vibration frequencies, ensuring comprehensive monitoring of various potential mechanical faults in rotating equipment.
• Robust MIL-C-5015 Connection: Features a secure and reliable industrial-grade connector, ensuring stable signal transmission even in demanding operating environments.
• Flexible Installation (Horizontal or Vertical): Available in configurations allowing for either horizontal or vertical mounting, providing adaptability to different machinery setups and space constraints.

Specifications

• Measurement Parameter: Vibration Speed
• Measuring Range: ±12.7 mm/s or ±25.4 mm/s (depending on version)
• Bandwidth: 3 Hz to 1500 Hz
• Output Signal: 4 ... 20 mA
• Connector: MIL-C-5015
• Process Connection: M6
• Operating Voltage: 12 ... 24 V DC
• Installation: Horizontal or Vertical (depending on version)
• Construction: Robust industrial design

Applications

The PCE-PVS 30 piezoelectric vibration sensor is essential for continuous monitoring of critical industrial machinery such as pumps, motors, fans, and turbines, providing early warnings of potential mechanical failures. Its 4-20 mA output makes it ideal for integration into predictive maintenance systems, allowing for automated tracking of vibration trends and triggering alarms when thresholds are exceeded. It is also valuable in process control applications where consistent machinery operation is crucial for maintaining product quality and preventing process disruptions. The sensor's robust design and wide bandwidth make it suitable for a variety of demanding industrial environments requiring reliable and continuous vibration speed data for condition monitoring and proactive maintenance.

Performance and Characteristics

The PCE-PVS 30 piezoelectric vibration sensor delivers accurate and reliable continuous measurement of vibration speed across a broad frequency range relevant to most industrial rotating equipment. Its industry-standard 4-20 mA output ensures seamless integration with a wide array of industrial control and monitoring systems, providing real-time data for immediate analysis and response. The robust construction of the sensor and the secure MIL-C-5015 connector guarantee reliable operation in harsh industrial conditions, minimizing signal interference and ensuring long-term durability. The availability of horizontal and vertical mounting options provides installation flexibility, making it adaptable to various machinery designs and spatial constraints. By providing continuous and accurate vibration speed data, the PCE-PVS 30 enables proactive maintenance strategies, leading to reduced downtime, optimized maintenance scheduling, and improved overall equipment reliability.

Additional Information

The PCE Instruments PCE-PVS 30 piezoelectric vibration sensor is a dependable and cost-effective solution for continuous vibration speed monitoring in industrial applications. Its focus on providing a standard 4-20 mA output simplifies integration with existing control infrastructure, making it a valuable component in comprehensive condition monitoring systems. The sensor's robust design and wide bandwidth ensure reliable performance and accurate data capture across a broad range of machinery and operating conditions. By providing continuous real-time vibration speed information, the PCE-PVS 30 empowers maintenance and process control professionals to make informed decisions, optimize maintenance efforts, and ultimately enhance the efficiency and longevity of their critical industrial assets.

Includes

• 1 x Acceleration Sensor PCE-PVS 30
• 1 x MIL-C 5015 plug to 5 m cable
• 1 x instruction manual
