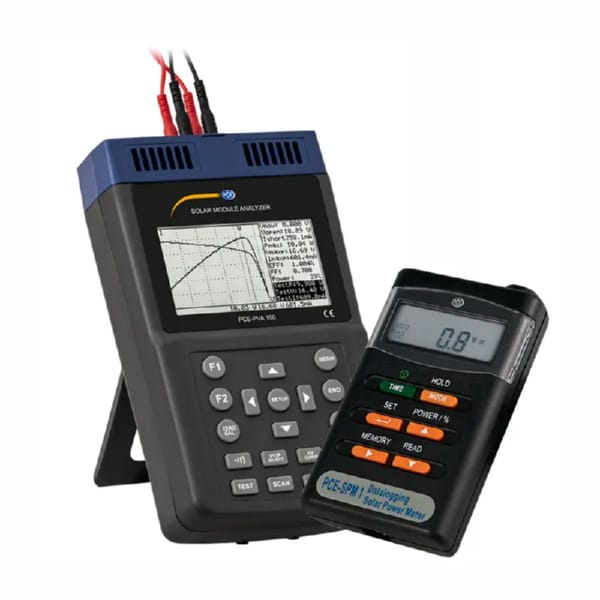

PCE Instruments PCE-PVA 100-SPM 1-KIT Radioactivity Meter Kit, Solar Panel Analyzer & Irradiance Meter
- Part #:PCE-PVA 100-SPM 1-KIT
- Condition:Brand New
Overview
The PCE Instruments PCE-PVA 100-SPM 1-KIT is a comprehensive photovoltaic meter kit designed to provide solar professionals with the tools necessary for in-depth analysis and optimization of solar energy systems. This kit combines the PCE-PVA 100 Photovoltaic Analyzer and the PCE-SPM 1 Solar Irradiance Meter, offering the capability to assess solar panel performance, measure solar irradiance, and collect crucial data for informed decision-making in solar installations and maintenance. It's an invaluable asset for engineers, installers, researchers, and educators working with solar energy.
Key Features
- Comprehensive Kit: Includes both a photovoltaic analyzer and a solar irradiance meter for complete solar system analysis.
- PCE-PVA 100 Photovoltaic Analyzer:
- Precise I-V Curve Measurement: Measures DC voltage (0-60V) and current (0-12A) to generate I-V curves, providing a detailed assessment of solar panel performance.
- Data Memory: Stores up to 100 measurements for convenient data storage and retrieval.
- PC Interface (USB): Enables data transfer to a computer for in-depth analysis and report generation using the included software.
- Three Test Functions: Automatic, Manual, and One-Point measurement modes offer flexibility for different testing needs.
- Efficiency Calculation: Calculates solar module efficiency and fill factor, essential parameters for evaluating energy conversion.
- Large LCD Display: 4.8-inch screen provides clear visualization of I-V curves and measured values.
- Switchable Views: Allows users to toggle between current, voltage, and power on the X and Y axes for detailed analysis.
- Rechargeable Battery: Provides approximately 400 measurement capacity for portability and convenience.
- PCE-SPM 1 Solar Irradiance Meter:
- On-Site Irradiance Measurement: Measures solar irradiance (Ptot) in W/m² or BTU/(ft² x h) to evaluate solar potential and system performance.
- Data Logger: Built-in data logger (32,000 data points) for long-term monitoring of solar radiation.
- Comparative Measurement: Enables comparison of irradiance levels at different locations or times.
- Data Analysis Software: Includes software for visualizing and analyzing recorded data on a PC.
- Rugged Design: Weatherproof housing for reliable outdoor use.
- Min/Max/Hold Functions: Conveniently captures peak, valley, and current values.
- Long Battery Life: Powered by 4 Li-ion batteries, providing approximately 16 days of continuous operation.
Specifications
- Kit Name: PCE Instruments PCE-PVA 100-SPM 1-KIT Photovoltaic Meter Kit
- Analyzer: PCE-PVA 100
- DC Voltage Measurement: 0-60V
- DC Current Measurement: 0-12A
- Display: 4.8-inch LCD
- Interface: USB
- Irradiance Meter: PCE-SPM 1
- Irradiance Units: W/m², BTU/(ft² x h)
- Data Logger Capacity: 32,000 data points
Applications
- Solar Panel Performance Assessment: Evaluating solar panel efficiency, identifying performance degradation, and optimizing energy output.
- Solar Site Evaluation: Determining the optimal location and orientation for solar installations by measuring solar irradiance.
- System Monitoring: Tracking solar power generation over time to identify potential issues and ensure system health.
- Research & Development: Collecting precise solar radiation data for scientific studies and developing new solar technologies.
- Educational Use: Demonstrating solar energy principles and measurement techniques in educational settings.
Performance and Characteristics
The PCE-PVA 100-SPM 1-KIT provides a comprehensive suite of tools for solar professionals. The PCE-PVA 100 enables precise I-V curve analysis, essential for diagnosing solar panel problems and maximizing energy yield. The PCE-SPM 1 measures solar irradiance accurately, crucial for site assessment and performance monitoring. The included software facilitates data analysis and reporting, streamlining workflow and improving decision-making. The rugged design of the instruments ensures reliable operation in field conditions.
Additional Information
This kit is designed to empower solar professionals with the data needed to optimize solar installations and ensure long-term performance. The I-V curve analysis provided by the PCE-PVA 100 is a powerful diagnostic tool, while the PCE-SPM 1's data logging capabilities are essential for long-term performance monitoring. Proper use of the equipment and data interpretation requires a good understanding of solar energy principles and measurement techniques. Refer to the user manuals for detailed operating instructions and specifications.
Kit Contents
This product includes:
- PCE-PVA 100 Photovoltaic Analyzer
- PCE-SPM 1 Solar Irradiance Meter
- Optical USB Cable
- RS-232 PC Cable
- Software CD
- Kelvin Clamps (x2)
- Safety Measuring Lines (x2, 100mm)
- Mains Power Adapter
- Batteries (for both devices)
- Device Bag
- User Manual
Optimize your solar energy systems with the powerful and comprehensive PCE Instruments PCE-PVA 100-SPM 1-KIT. Invest in precision and efficiency today!
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Environmental meter PCE-PVA 100 | |
| DC Voltage | |
| Measuring range | 0 … 10 V |
| Resolution | 0.001 V |
| Accuracy | ±1 % ±(1 % of Vopen ±0.1 V) |
| Measuring range | 10 … 60 V |
| Resolution | 0.1 V |
| Accuracy | ±1 % ±(1 % of Vopen ±0.1 V) |
| Vopen: open voltage measurement on a solar module | |
| Direct Current | |
| Measuring range | 0.01 … 10 A |
| Resolution | 1 mA |
| Accuracy | ±1 % ±(1 % of Ishort ±9 mA) |
| Measuring range | 10 … 12 A |
| Resolution | 10 mA |
| Accuracy | ±1 % ±(1 % of Ishort ±0.09 A) |
| Ishort: short-circuit current of a solar cell | |
Further specifications | |
| Adjustable photovoltaic area | 0.001 … 9999 m² |
| Adjustable irradiance | 10 … 1000 W/m² |
| Display | 4.8" LC display |
| Fuse | F250 V, 12 A |
| Data memory | 100 measurements |
| Storage rate | 0 … 99 minutes |
| Battery life | ca. 400 linear measurements from 60 … 0 V |
| and 0 … 12 A | |
| Power supply battery | 11.1 V, 3400 mAh lithium battery |
| Power supply mains adapter | Primary: 100 … 240 V AC 50/60 Hz |
| Secondary: 15 V DC / 3A | |
| Degree of pollution | 2 |
| Temperature coefficient | 0.1 % of the measuring range / |
| °C / °F at temperatures <18 °C / 64 °F and >28 °C / 82 °F | |
| Operating conditions | -20 … 60 °C / -4 ... 140 °F <75 % RH, non-condensing |
| Dimensions | 257 x 155 x 57 mm / 10.1 x 6.1 x 2.2 in |
| Weight | 1160 g / 2.6 lbs |
| Environmental meter PCE-SPM 1 | |
| Measuring range | 0 ... 2000 W/m² |
| Resolution | 1 W/m² |
| Accuracy | ±10 W/m² or ±5 % (the higher value applies) |
| Spectral range | 400 ... 1100 nm |
| Data memory | 32,000 measured values |
| Measuring rate | adjustable |
| Data transmission | serial RS232 interface |
| Display | LCD |
| Ambient temperature range | 0 ... +50 °C / 32 ... 122 °F |
| Max. humidity | <80 % RH |
| Power supply | 4 x 1.5 V AAA Li-ion battery (for ca. 16 days of continuous use) |
| Dimensions | 111 x 64 x 34 mm / 4.37 x 2.52 x 1.34" |
| Weight | 165 g / 5.8 oz |
