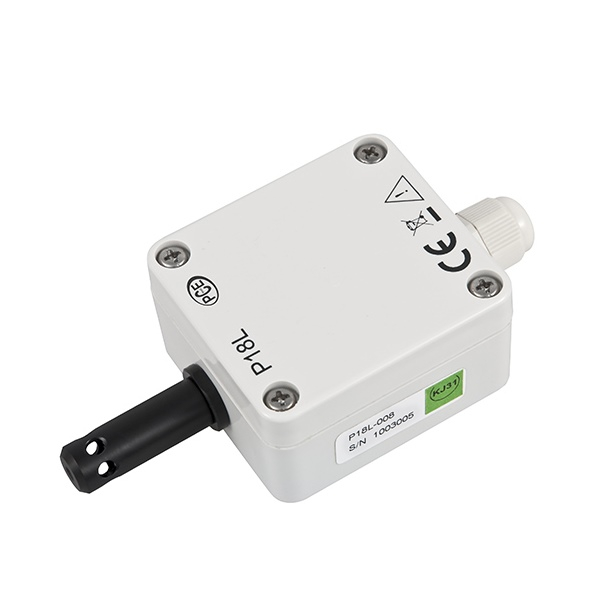

PCE Instruments PCE-P18L Humidity Sensor for Converts Temperature or Humidity to 4 ... 20 mA Signal
- Part #:PCE-P18L
- Condition:Brand New
- List Price: $183.00
- $172.36 / EachYou Save: 5.81%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $183.00
- $172.36 / EachYou Save: 5.81%
- Free Shipping
Humidity sensor converts temperature or humidity to a 4 ... 20 mA signal / high precision / supply via current loop / wall mounting
The humidity sensor was developed and constructed for the permanent monitoring of temperature or humidity. The compact dimensions of the humidity sensor are the characteristics of this instrument. The measurement of the temperature and humidity is via a semiconductor component. Internally, the physical quantities to be measured are converted toa 4 ... 20 mA standard signal. The power of this measuring instrument isconnected to a DC voltage into a current loop and is thus ideally suited fordisplayswith transmitter power supply. But it can also be connected to the paperless recorder for long-term monitoring of environmentalconditions.
Features:
- sensor for temperature and humidity
- 4 ... 20 mA output
- easy wall mounting
- for permanent monitoring
- various filters available
- small size
Includes:
- 1 x Humidity Sensor PCE-P18L
- 1 x operating instructions
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Technical data humidity sensor PCE-P18L humidity | |
| measuring range | 0 ... 100% RH ± 2% (in the range 10% .... 90% RH) |
| accuracy | ± 3% (remaining range) |
| hysteresis | ± 1% RH |
| temperature | |
| measuring range | - 20 ... 60 ° C |
| accuracy | ± 0.5% of the measuring range |
| temperature effect | ± 25% / 10 ° C |
| Output current | 4 ... 20 mA |
| Max. connectable resistor at the output | ≤ 500 Ω |
| supply voltage | 19 V ... 30 V DC |
| Setting the output size | via DIP - switch |
| power | <1.5 W |
| ambient temperature | - 30 ° C ... 85 ° C |
| Max. humidity | ≤ 95% RH |
| preheat | 15 minutes |
| degree of protection | IP 65 |
| Assembly | wall mounting |
| Dimensions (wxhxd) | 35 x 58 x 118 mm |
| Weight | 125 g |
