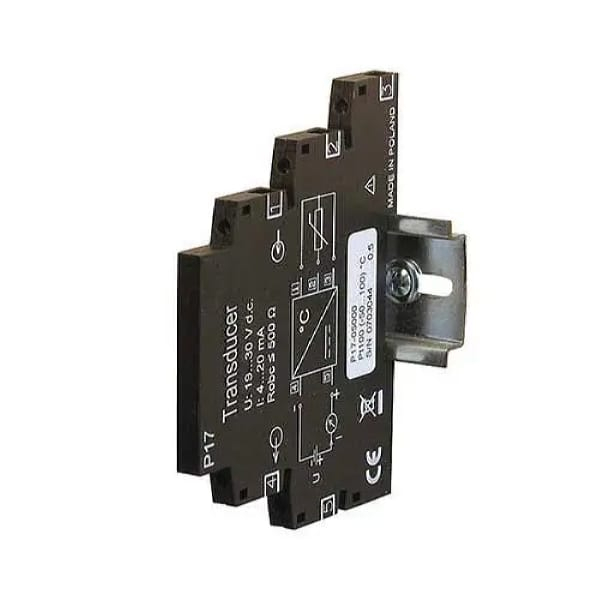

PCE Instruments PCE-P17U Signal Transducer for Conversion of 0 ... 10 V in 4 ... 20 mA
- Part #:PCE-P17U
- Condition:Brand New
- List Price: $102.00
- $100.98 / EachYou Save: 1.0%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $102.00
- $100.98 / EachYou Save: 1.0%
- Free Shipping
Signal transducer for the conversion of 0 ... 10 V in 4 ... 20 mA/ Supply 19 ... 30 V DC/ merely 6.2 mm wide / DIN rail mounting / for all transmitters with voltage output
The signal transducer for 0 ... 10 V PCE P17U converts voltage signals into standard electricity signals. The power of the signal transducer for 0 ... 10 V is supplied via a current loop. Each sensor or transducer with 0 to 10 V output can be connect to the input of the signal transducer. The output of the signal transducer 0 to 10 V can be connect to displays, controllers or screen recorders. It should be noted that the load is no bigger than 500 Ω. Due to the small installation dimensions of only 6.2 mm, the signal transducer for 0 ... 10V signals fits onto any DIN rail mounting.
Features:
- Converter for 0 to 10 V signals
- Power supply via electricity loop
- Low installation width
- Mounting on DIN rail
- Output 4 ... 20 mA
- Simple design
Includes:
- 1 x Signal Transducer PCE-P17U,
- 1 x manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Technical Specification of the Signal Transducer PCE-P17U | |
| Input signal | 0 ... 10 V |
| Output signal | 4 ... 20 mA |
| Load (RLOAD) | Max. 500 Ω |
| Conductor cross-section | 0.2 mm ² ... 2.5 mm ² (AWG24-12) |
| Mounting width | 6.2 mm |
| Power | 19 ... 30 V DC |
| Weight | 80 g |
| Ambient temperature | - 20 ° C ... + 65 ° C |
| Ambient humidity | <95% non-condensing |
| Dimensions | 77.5 x 6.2 x 100 mm |
