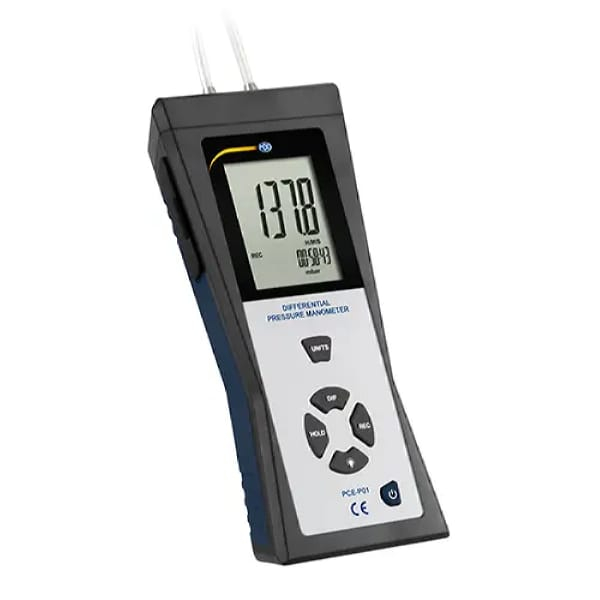

PCE Instruments PCE-P01 Differential Manometer for Measuring Range
- Part #:PCE-P01
- Condition:Brand New
- List Price: $207.00
- $187.91 / EachYou Save: 9.22%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $207.00
- $187.91 / EachYou Save: 9.22%
- Free Shipping
Differential manometer for the measuring range from -140 to +140 mbar, including software
The differential pressure meter PCE-P01 is a robust, compact and comprehensive differential pressure gauge for measuring pressure in 11 adjustable units. The PCE-P01 is particularly suitable for the complete documentation of your measuring tasks. The minimum, maximum and average values of your measurement can be viewed in parallel to the current measured value on the large display of the PCE-P01 differential meter. For example, if you want to determine and document pressure fluctuations, you can use the enclosed software, with the help of which it is possible, for example, to transfer the measured values to the computer every second and display them graphically and in tabular form.
Features:
- Easiest operation
- Measurement of differential pressure and static pressure in 11 selectable units: mbar, bar, psi, kPa, ...
- Measuring range from -140 to +140 mbar
- Min / max and average value display
- "Hold" function
- Backlight can be switched on / off
- For long-term measurements including power supply
- Software with USB cable included
- Battery level indicator
- Auto-off function that can be switched off
- Zero point adjustment possible at any time
Includes:
- 1 x Pressure Meter PCE-P01
- 4 x 30cm / 11.8" silicone hose
- 1 x Software including USB cable
- 1 x 9V block battery
- 1 x 9V DC power supply
- 1 x Plastic case
- 1 x User manual
Note: Overloading destroys the pressure sensor on the differential pressure meter
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Measuring range (±) inH2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar | 55.40 2.000 137.8 13.79 4.072 103.4 32.00 4.612 140.6 0.140 0.137 |
| Resolution inH2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar | 0.01 0.001 0.1 0.01 0.001 0.1 0.01 0.001 0.1 0.001 0.001 |
| Accuracy (at +25 °C / +77 °F) | ± 0.3% of measuring range |
| Linearity | ± 0.2% |
| Response time | Approx. 0.5 sec. |
| Max. pressure | 689 mbar |
| Operating temperature | 0 ... 50°C / 32 ... 122°F |
| Storage temperature | -10 ... 60°C / 14 ... 140°F |
| Media | Air and non-explosive gases |
| Real-time data-logging interval | 1 sec. to 24 h adjustable |
| Display | Dual LCD |
| Dimensions | 210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D) |
| Weight (without batteries) | 650 g / 1.44 lbs |
| Power supply | Battery: 1 x 9V block AC adapter: 9V DC / 500-mA |
