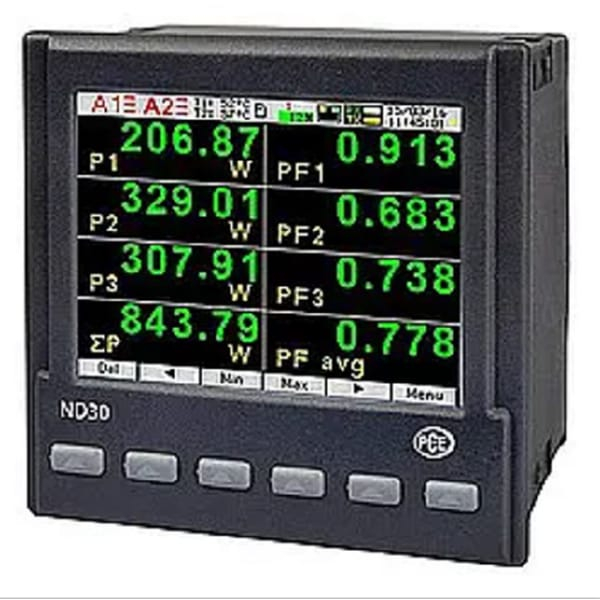

PCE Instruments PCE-ND30 Power Indicator

Overview

The PCE Instruments PCE-ND30 Power Indicator is a sophisticated device designed for comprehensive monitoring of electrical power systems. This instrument is capable of measuring 54 parameters in a voltage/current (U/I) network, providing detailed insights into power quality and energy consumption. Beyond basic power measurements, the PCE-ND30 can detect voltage, current, and harmonics up to the 51st order. It supports both 1-phase and 3-phase systems, regardless of load balance. All measured values are displayed graphically on the device's screen, with user-configurable display options. This power indicator is a versatile and powerful tool for professionals needing detailed power system analysis and management.

Key Features

• Comprehensive U/I Network Measurement: Measures a wide range of parameters in voltage/current (U/I) networks, providing a complete overview of power system performance.
• Harmonics Analysis: Detects and analyzes harmonics up to the 51st order, identifying potential power quality issues.
• Configurable Display: Allows users to customize the displayed measurement values in up to 10 groups with 8 parameters each.
• Max/Min Value Display: Displays both current measured values as well as maximum and minimum values for trend analysis.
• Alarm Relays: Features two built-in relays that can be configured to trigger alarms when measurement values exceed or fall below user-defined thresholds.
• Optional Analog Output: Offers an optional 0/4 ... 20 mA analog output for integration with external control or monitoring systems.
• Optional Temperature Inputs: Provides two optional inputs for PT100 temperature sensors, enabling simultaneous monitoring of temperature alongside electrical parameters.
• Optional Data Logging: Can be equipped with an 8 GB memory for data logging, allowing for historical analysis of power system performance.
• Optional Ethernet Interface: Offers an optional Ethernet interface for network connectivity and remote access via a web interface.
• RS485 Modbus Interface: Comes standard with an RS485 Modbus interface for communication with other devices and systems.
• Panel Mounting: Designed for easy installation in control panels or electrical cabinets.

Specifications

• Brand: PCE Instruments
• Model: PCE-ND30
• Parameters Measured:
  • Voltage (U)
  • Current (I)
  • Active Power
  • Reactive Power
  • Apparent Power
  • Power Factor
  • Frequency
  • Energy Consumption (kWh)
  • Harmonics (up to 51st order)
• Display: Graphic LCD
• Memory: 8 GB (optional)
• Interface: RS485 Modbus (standard), Ethernet (optional)
• Analog Output: 0/4 ... 20 mA (optional)
• Temperature Inputs: 2 x PT100 (optional)
• Relays: 2 x Alarm Relays
• Mounting: Panel mounting

Applications

Essential for industrial facilities and manufacturing plants to monitor energy consumption, optimize power usage, and improve energy efficiency. Crucial for power distribution networks, enabling precise monitoring of voltage, current, and power quality to ensure reliable and stable power delivery. Valuable for building management systems, providing detailed energy data for building automation and control. Applicable in renewable energy systems, monitoring the output and performance of solar panels, wind turbines, and other renewable sources. Useful for troubleshooting power quality problems and identifying sources of harmonic distortion. This instrument is vital for any application where comprehensive and accurate power system monitoring is required.

Performance and Characteristics

The PCE-ND30 Power Indicator provides accurate and detailed measurements of various electrical parameters, giving professionals a complete understanding of power system behavior. Its ability to measure harmonics up to the 51st order is crucial for identifying and mitigating power quality issues. The configurable display allows users to tailor the information shown to their specific needs. The optional data logging capabilities enable long-term monitoring and trend analysis, facilitating proactive maintenance and optimization. The alarm relays provide a mechanism for automated responses to critical events. The optional analog output and temperature inputs expand the device's versatility for integration with other systems. The standard RS485 Modbus interface ensures compatibility with industrial communication networks. The optional Ethernet interface provides convenient remote access and data retrieval. The panel mounting design allows for easy integration into existing electrical infrastructure.

Additional Information

PCE Instruments is a reputable manufacturer of professional testing and measurement equipment, known for its commitment to accuracy and reliability. The PCE-ND30 Power Indicator is designed to meet the demanding requirements of industrial and commercial power monitoring applications. Its comprehensive measurement capabilities, flexible configuration options, and robust communication interfaces make it a valuable tool for energy management professionals, electrical engineers, and maintenance technicians. The device empowers users to optimize power usage, improve energy efficiency, and ensure the reliable operation of electrical systems.

Kit Contents

• 1 x Power Indicator PCE-ND30 (in the selected configuration)
• 1 x User manual

Gain comprehensive control over your power systems and optimize energy efficiency with the versatile PCE Instruments PCE-ND30 Power Indicator!
