PCE Instruments PCE-N50B Panel Indicator with Digital Built-In Display for 10 Slave Devices
- Part #:PCE-N50B
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e){kind=small}

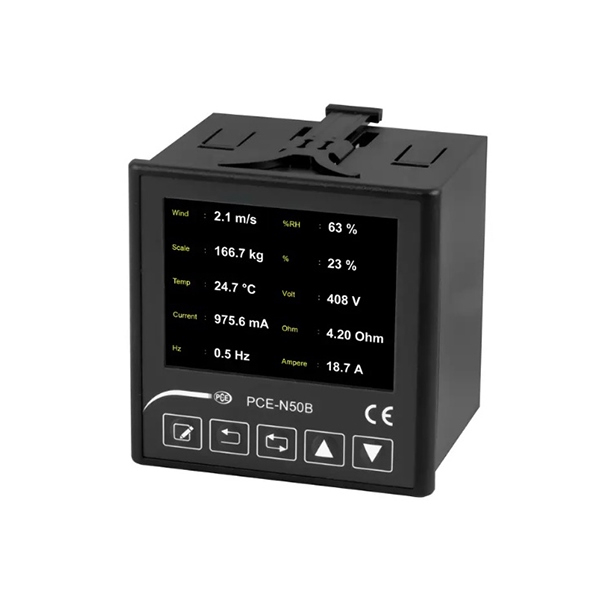

Free ShippingPanel Indicator PCE-N50B
Digital built-in display for 10 slave devices / 3.5" graphic LCD / 90.5 x 90.5 mm (3.6 x 3.6 in) Panel Cutout / Single or Multiple Display / IP65
The panel indicator has a RS485 Modbus interface. This panel indicator can display the measured data of up to 10 slave devices or registers. As a built-in display, the panel indicator has a 3.5" LCD display.
Here individual measured values and also several measured values can be displayed simultaneously. The digital panel is mounted in a 90.5 x 90.5 mm / 3.6 x 3.6 in panel cut-out. The text before the measured value can be set individually for each query register in the digital Modbus installation display. The front of the panel indicator is protected to IP 65.
Features:
- Modbus RTU Master
- 3.5" LCD display
- 10 registers / slave devices can be queried
- Baud rate individually adjustable
- Further power supply area
- Setting via buttons
Includes:
- 1 x Panel Indicator PCE-N50B
- 2 x Mounting clamps
- 1 x User manual
- Main Products
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Interface | RS 485 Modbus RTU Master |
| Number of slave devices / registers | 10 |
| Operating conditions | 0 ... 50°C / 32 ... 122°F, max 80% RH |
| Storage conditions | -25 ... 70°C / -13 ... 158°F, max. 80% rh |
| Degree of protection | Front: IP65 Rear: IP20 |
| Power supply | 90 ... 250V AC |
| Input | Max. 7 VA |
| Connections | Screw Voltage supply: max. 2.5 mm² Signal input: max. 1.5 mm² |
| Dimensions | 96 x 96 x 81 mm / 3.8 x 3.8 x 3.2 in |
| Weight | About 400 g / < 1 lb |
