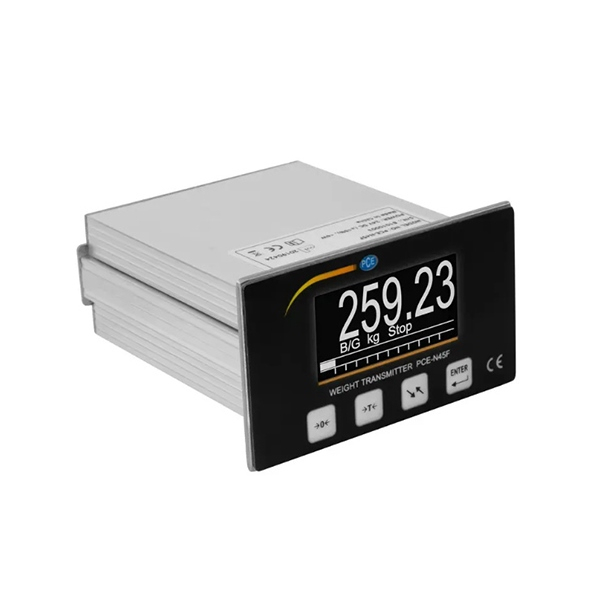

PCE Instruments PCE-N45F Weighing Indicator for Load Cells, Force Sensors and Weighing Platforms
- Part #:PCE-N45F
- Condition:Brand New
- List Price: $760.00
- $623.10 / EachYou Save: 18.01%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $760.00
- $623.10 / EachYou Save: 18.01%
- Free Shipping
Indicator PCE-N45F
Weighing indicator for load cells, force sensors and weighing platforms / 4 and 6 wire connection technology / OLED display / Analogue output / Digital input / Relays
The indicator is used to realize individual weighing solutions. Load cells, force sensors, weighing platforms and other sensors that use strain gauges can be connected to the indicator. This makes the indicator a versatile measuring instrument for weight, force, torque, etc. The indicator has a measuring input to which the sensors can be connected in 4 or 6-wire technology. The menu can be used to perform an exact calibration / adjustment from the indicator.
The indicator has many rear connections. Thus, the 4 NO relays and the potential-free digital input are connected here on the indicator. The outputs can be used to trigger different processes. The digital input is used to tare the indicator or to set the display to 0. In addition to these functions, the indicator can be deleted via the interface. The analogue output is used to pass on the displayed value directly from the indicator.
Features:
- OLED display
- Display for DMS
- mV / V input
- Relay output
- Potential-free digital input
- Interface and analog output
Includes:
- 1 x Indicator PCE-N45F
- 1 x Sealing tape
- 1 x User manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Signal Input Range | 0 ... 10 mV |
| Sensitivity in mV / V at 5V | 2 mV / V |
| Minimal sensitivity | 0.9 μV / D |
| Signal Input Range | 0 ... 15 mV |
| Sensitivity in mV / V at 5V | 3 mV / V |
| Minimal sensitivity | 0.9 μV / D |
| Supply voltage of the measuring cell | 5V |
| Number of measuring cells | 1 ... 6x 350 Ohm measuring cell (s) |
| Display | OLED 128 x 64 pixels |
| Units | g, kg, t, kN, N, Nm |
| Measuring rate | 200 Hz |
| Electrical connections | Screw 1 ... 1.5 mm² |
| Power supply | 24V DC |
| Input | < 6W |
| Degree of protection | Front: IP65 |
| Assembly | Panel cut |
| Size panel cutout | 92 x 44 mm |
| Dimensions | 110 x 62 x 119 mm / 4.3 x 1.3 x 4.7 in |
| Weight | About 440 g / < 1 lb |
| Operating conditions | -10 ... 40°C / 14 ... 104°F, max 95% rh |
